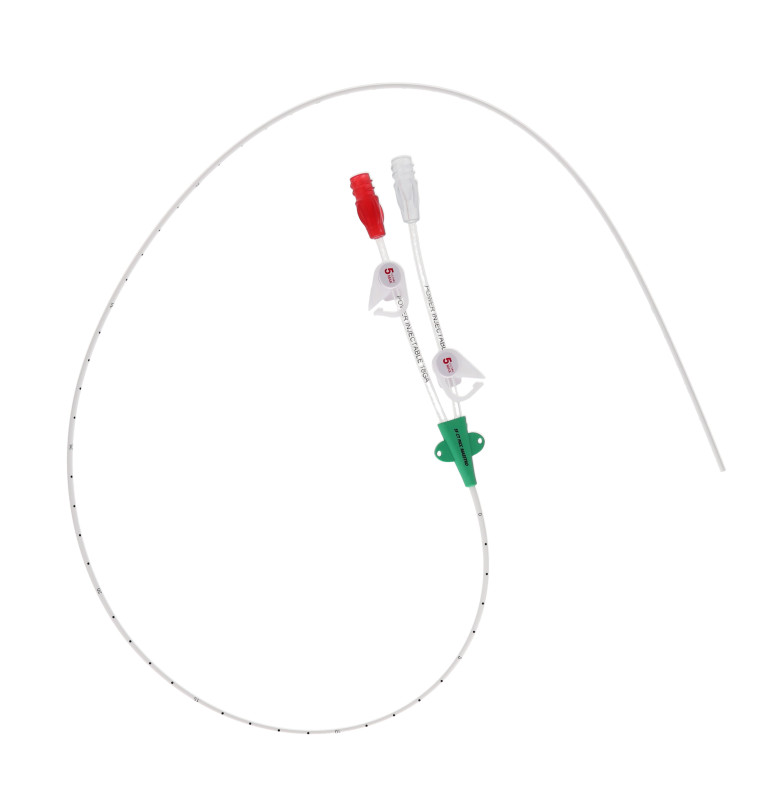

Pressure injectable PICC
CT PICC Maestro basic kit
Beskrivning
Availaible in 3Fr - 1L, 4Fr - 1L and 2L, 5Fr - 1L and 2L, 6Fr - 2L and 3L Biostable polyurethane catheter 60cm Radio-opaque Compatible… Läs mer
Indikation
Central venous access for short-term (up to 29 days) or long-term (> 29 days) IV therapy. For administration of parenteral nutrition, antibiotics, chemotherapy, IV medication, fluids or drugs for pain management, for blood withdrawal for pressure injection of contrast media.
Produktens höjdpunkter
High Pressure injectable:
Lifecath CT PICC Maestro is compatible with high pressure injection up to 5 mL/s (300 psi).
A reverse tapered catheter:
The Lifecath CT PICC Maestro catheter is reverse tapered on its proximal end to prevent bleeding at the insertion site.
Wide range:
The Lifecath CT PICC Maestro is available in four catheter sizes: 3Fr, 4Fr, 5Fr and 6Fr, in one, two or three lumens. To meet the needs of different types of placers and their insertion technique, there are several kit configurations:
- Nursing with 45 cm guidewire
- Basic with 70 cm guidewire
- IR with 130 cm guidewire
Beskrivning
Availaible in 3Fr - 1L, 4Fr - 1L and 2L, 5Fr - 1L and 2L, 6Fr - 2L and 3LBiostable polyurethane catheter
- 60cm
- Radio-opaque
- Compatible with high pressure contrast injections up to 5 ml/sec and 300 psi
- Graduated every 5cm
- Tapered design
- Identification on the clamp:
o maximum flow rate
- Profiled fixation wing
Introduction kit:
- 1 Twisted Wire Stylet
- 21G - 7cm Safety Needle
- 21G - 5cm Non-safety Needle (only for 3Fr - 1L and 4Fr - 2L)
- Tearaway Introducer
o 10cm for 4Fr - 1L, 5Fr - 1L, 5Fr - 2L, 6Fr - 2L, 6Fr - 3L in IR kits
o 7cm for 4Fr - 1L, 5Fr - 1L and 2L, 6Fr - 2L and 3L in nursing kits, for all the standard kits, for 3Fr - 1L and 4Fr - 2L in IR kits
- Nitinol Straight Guidewire with lock system
o 70cm in standard kits
o 130cm in IR kits
- 1 10cc Luer Lock Syringe
- 1 n°11 Safety Scalpel
- 1 24″ Paper Tape Measure
- 1 Grip-lok
- 1 or 2 or 3 valves Bionectors
- Traceability labels
- IFU
- Patient guide
Referenser och funktioner
Catheter | Förpackning | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Favourites | Kod | Fr Fr | Kit | Length cm | Injector pressure psi | Lumen Number | Ext. Ø cm | Prim. vol. ml | Flow rate by gravity ml/min | Max. flow rate ml/s | Antal/Avd.förpackning | Antal/Trp.förpackning |
PM-03160 | 3 | Basic | 60 | 300 | 1 | 0.1 | 0.39 | 1.5 | 0.5 | 5 | 20 | |
PM-04160 | 4 | Basic | 60 | 300 | 1 | 0.15 | 0.50 | 20 | 5 | 5 | 20 | |
PM-04260 | 4 | Basic | 60 | 300 | 2 | 0.15 | 0.42 | 3,5 / 3,5 | 0.5 | 5 | 20 | |
PM-05160 | 5 | Basic | 60 | 300 | 1 | 0.18 | 0.70 | 35 | 5 | 5 | 20 | |
PM-05260 | 5 | Basic | 60 | 300 | 2 | 0.18 | 0,50 / 0,50 | 10 / 10 | 5 | 5 | 20 | |
PM-06260 | 6 | Basic | 60 | 300 | 2 | 0.21 | 0,60 / 0,60 | 14 / 14 | 5 | 5 | 20 | |
PM-06360 | 6 | Basic | 60 | 300 | 3 | 0.21 | 0,65 / 0,42 / 0,42 | 17/5/5 | 5 | 5 | 20 |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
