Needle-free connectors

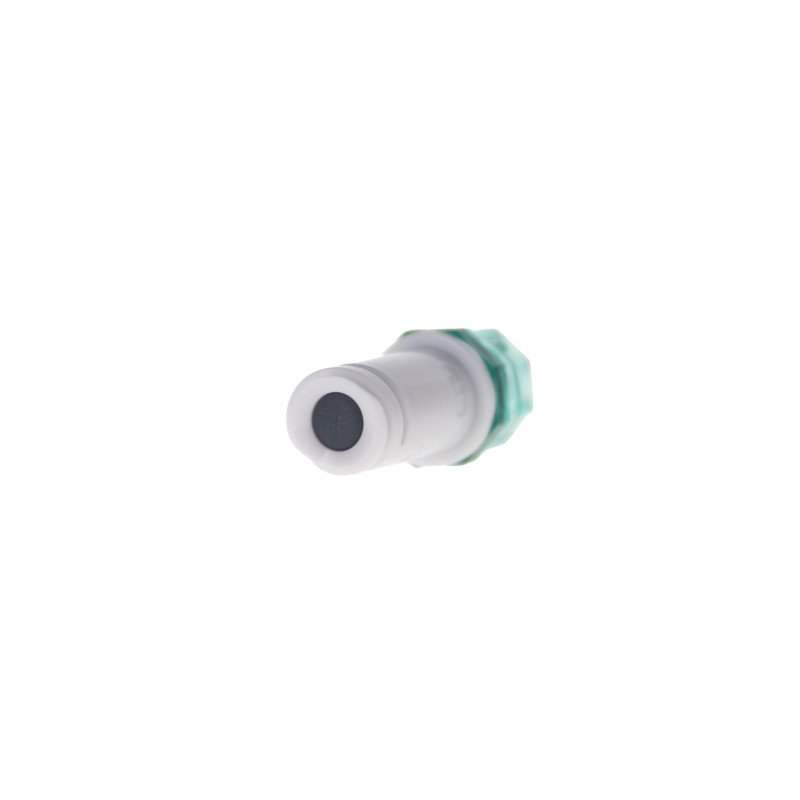

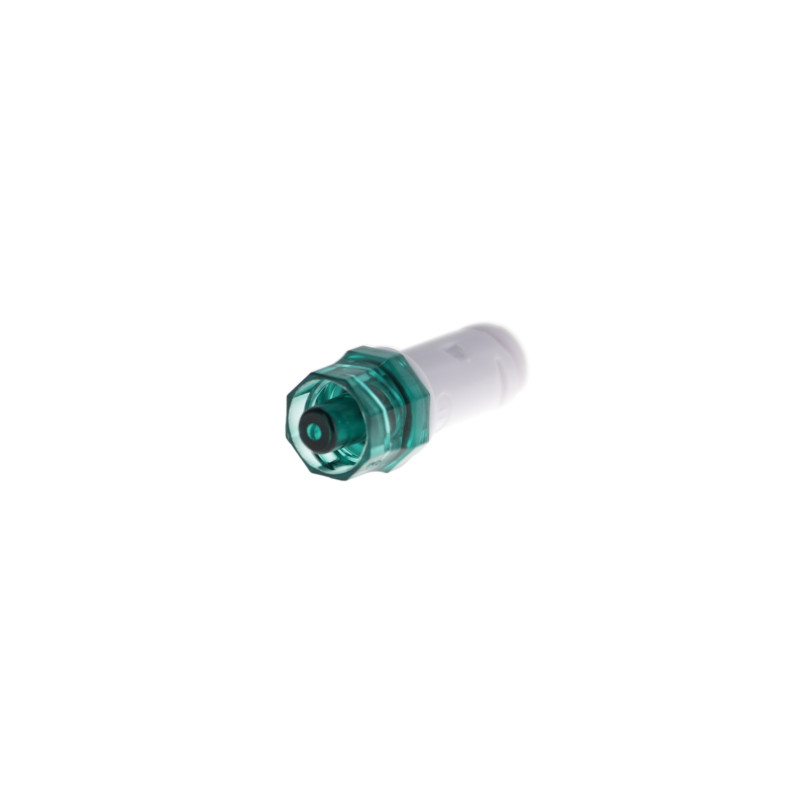

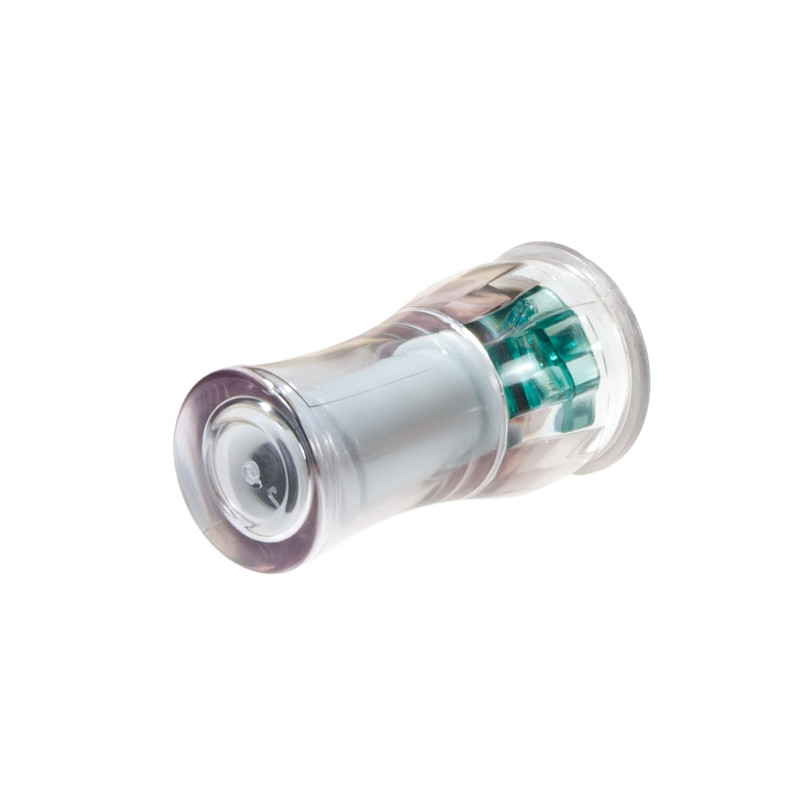

Bionector

Beskrivning

Bionector is a multi-purpose, closed, needle-free connection device. When Bionector is in place, you can infuse, inject sample and change the I.V… Läs mer

Indikation

Needle-free connector for I.V infusions. Bionector is connected directly to IV catheters or to IV extension tubes, stopcocks, ramps of stococks etc. It allows blood samplings, intermittent injections or continuous infusions of fluids or drugs maintaining constantly a closed IV system.

Se alla referenser

Behöver du mer information?

Skicka en förfrågan

Instruktioner för användning

Beskrivning

Bionector is a multi-purpose, closed, needle-free connection device. When Bionector is in place, you can infuse, inject sample and change the I.V. tubing without the I.V. circuit to the atmosphere. Bionector's membrane automatically opens the fluid pathway only when a male Luer is disconnected, the membrane automatically seals the fluid pathway.

Bionector preserves constantly a closed system
7 days or 360 connections
Straight fluid pathway
Neutral displacement of fluid
Minimal dead space
Can be used with power injectors (CT-scan). Pressure resistance: 350 psi
MRI conditional

Har du en fråga?

Kontakta oss

Kontakt

Ge oss din feedback

Om du redan har använt den här produkten kan du dela med dig av dina erfarenheter till våra FoU-team.

Betygsätt produkten

Referenser och funktioner

		Bionector								Förpackning
Favourites	Kod	Flow rate ml/min	Number of accesses	Max. duration of use	Length mm	Diameter mm	Weight g	Internal Diameter mm	Priming volume ml	Antal/Avd.förpackning	Antal/Trp.förpackning
	896.01	105	360	7 days	25.7	10	1.243	0.90 +/- 0.02	-	50	1600
	896.02	105	360	7 days	25.7	10	1.243	0.90 +/- 0.02	-	25	1200
	896.03	105	360	7 days	25.7	10	1.243	0.90 +/- 0.02	-	50	2400
	896.038	105	360	7 days	25.7	10	1.495	0.90 +/- 0.02	-	50	2400
	896.11	105	360	7 days	25.7	10	-	-	0.03	50	2400
	896.31	105	360	7 days	25.7	10	-	-	0.03	50	1600
