Hybrid implantable ports
Polysite ISP
Beskrivning
Adult venous implantable port with Mini port and peelable introducer (7Fr or 8Fr). Two types of port existing: Port with catheter to connect in… Läs mer
Indikation
POLYSITE implantable ports allow repeated and prolonged access to the venous system.
POLYSITE implantable ports are used to administer chemotherapy, antibiotics and antiviral drugs. They can also be used for parenteral nutrition, collection of blood samples and transfusion of blood or blood products. All POLYSITE references can be used for pressure injection of contrast media during CT procedures (compatible with high pressure injectors, cf IFU Chap. USE AND MAINTENANCE part. INJECTION OF CONTRAST MEDIA DURING CT SCAN PROCEDURES).
Produktens höjdpunkter
Light and safe
Polysite® consists of a titanium reservoir and a polyoxymethylene (POM) outer casing, making Polysite® a lightweight implantable chamber. All Polysite® components are radiopaque.
Moreover, Polysite® has smooth angles and his profile-shaped design requiring only a small surgical pocket.
Pressure injectable
Polysite® is compatible with pressure injection of contrast media during CT scan or MRI procedures up to flowrate 5 ml/s and maximum pressure 325 psi.
Adaptability
Polysite® ports comes in a range of sizes to suit all patient morphologies, from paediatric to adult:

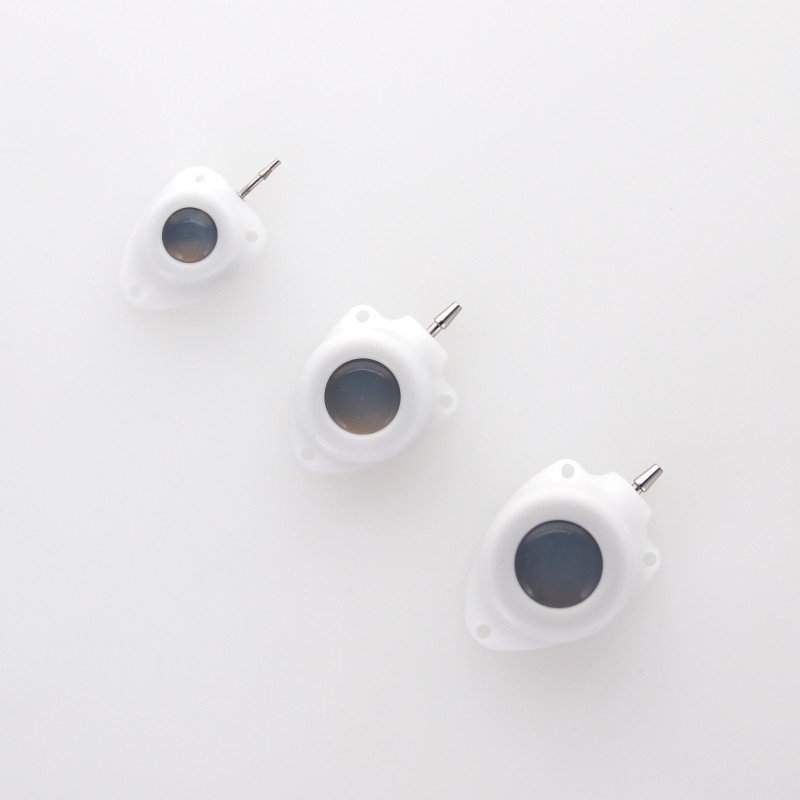

- 3 case sizes (micro, mini, standard). Ports pre-connected or to be connected.
- Different catheter diameters from 5Fr to 10Fr. as well as different lengths (60 to 80 cm). Catheters available in polyurethane or silicone.
The Polysite® range is also designed to suit the needs of every user, with different kits available: surgical, percutaneous and percutaneous with ultrasound-guided puncture.
The implantable ports Polysite® is a Class III sterile medical device. Certification established by GMED notified body no. 0459.
They allow repeated and prolonged access to the venous system.
Read the instructions for use carefully.
Device manufactured by PEROUSE MEDICAL and distributed by VYGON.
Beskrivning
Adult venous implantable port with Mini port and peelable introducer (7Fr or 8Fr).Two types of port existing:
- Port with catheter to connect in silicone (codes VPE3007ISP and VPE3008ISP) or in polyurethane (code VPE3017ISP).
- Port with pre-connected catheter in silicone (codes VPE3107ISP or VPE3108ISP) or in polyurethane (code VPE3117ISP).
Each percuteneous placement kit Polysite ISP contains:

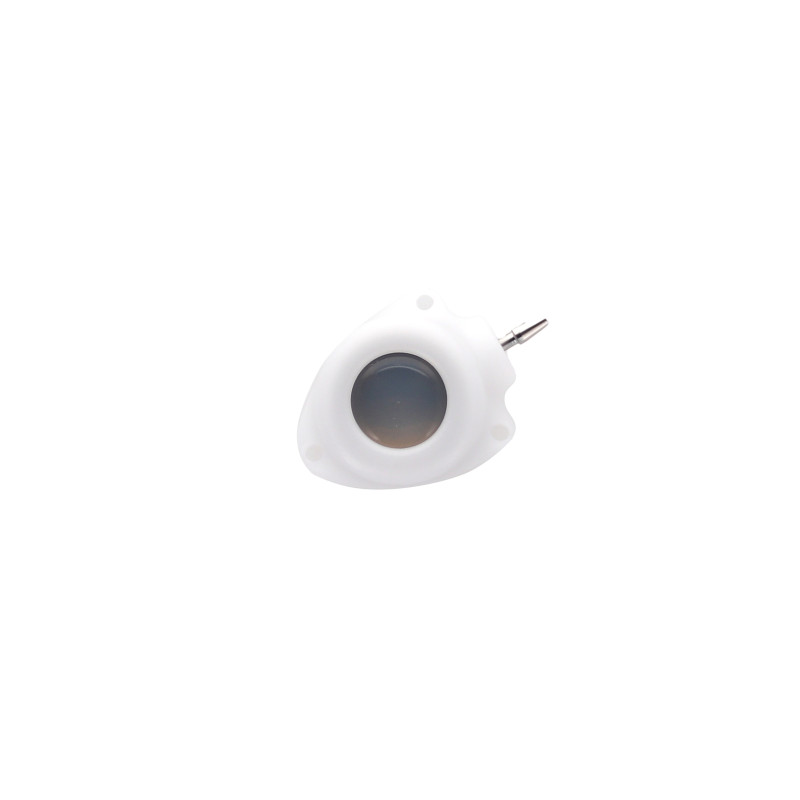

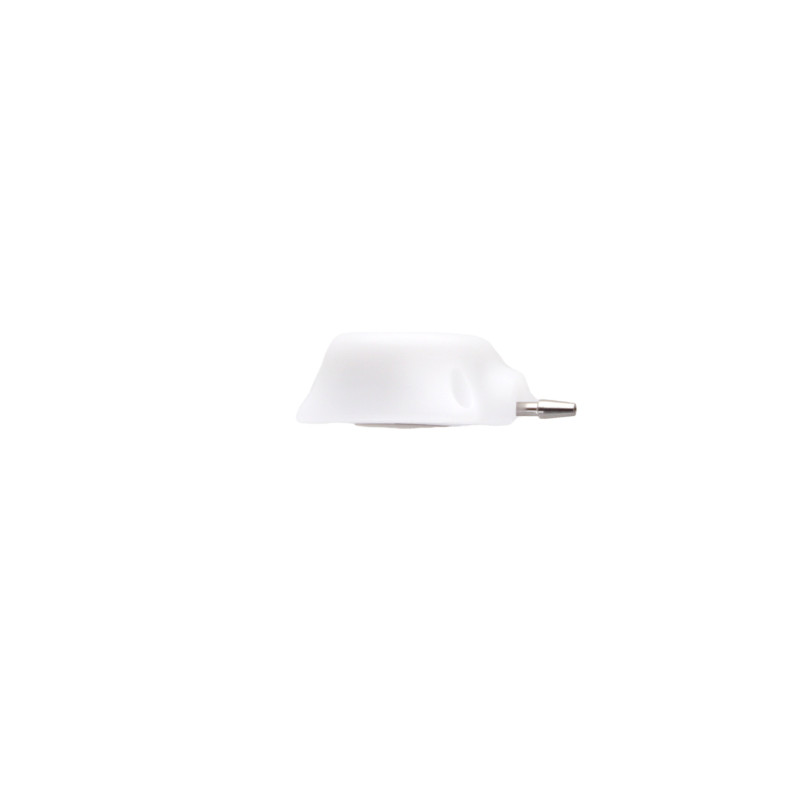

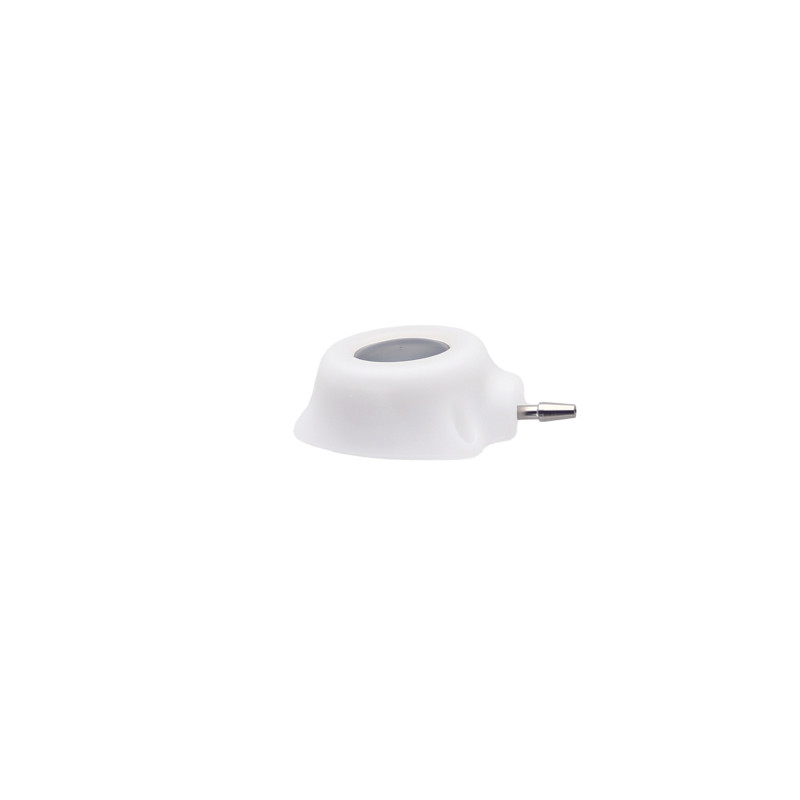

- One titanium and POM (polyoxymethylene) mini port with a silicone septum,
- One 60cm XRO silicone or polyurethane catheter. Graduation every cm with a numbered marking every 5cm from 5 to 40cm,
- Two connection rings (only one for pre-connected references) with a Phynox thread containing nickel,
- One straight Huber needle (22G),
- One vein pick,
- One flushing connector (for non pre-connected references), pre-connected to the catheter,
- One 10ml syringe,
- One J guidewire graduated every 10cm - 0.035" - 60mm,
- One puncture needle - 18G - 70mm useable length,
- One tunneler diameter 2.5mm - length 23cm,
- One peelable introducer - length 17cm.
Referenser och funktioner
Implantable port | Catheter | Introducer | Förpackning | |||||
---|---|---|---|---|---|---|---|---|
Favourites | Kod | Prim. vol. ml | Ext. Ø mm | Material | Connection | Diameter Fr | Antal/Avd.förpackning | Antal/Trp.förpackning |
2005 ISP | 0.2 | 0.65 x 1.65 | Silicone | Standard | 5 | 1 | 1 | |
2007 ISP | 0.2 | 1.02 x 2.16 | Silicone | Standard | 7 | 1 | 1 | |
2015 ISP | 0.2 | 1.05 x 1.65 | Polyurethane | Standard | 5 | 1 | 1 | |
2016 ISP | 0.2 | 1.3 x 2.0 | Polyurethane | Standard | 6 | 1 | 1 | |
3007 ISP | 0.35 | 1.02 x 2.16 | Silicone | To connect | 7 | 1 | 1 | |
3008 ISP | 0.35 | 1.2 x 2.4 | Silicone | To connect | 8 | 1 | 1 | |
3017 ISP | 0.35 | 1.45 x 2.3 | Polyurethane | To connect | 7 | 1 | 1 | |
3107 ISP | 0.35 | 1.02 x 2.16 | Silicone | Pre-connected | 7 | 1 | 1 | |
3108 ISP | 0.35 | 1.2 x 2.4 | Silicone | Pre-connected | 8 | 1 | 1 | |
3117 ISP | 0.35 | 1.45 x 2.3 | Polyurethane | Pre-connected | 7 | 1 | 1 | |
40010 ISP | 0.55 | 1.57 x 3.18 | Silicone | To connect | 10 | 1 | 1 | |
4008 ISP | 0.55 | 1.2 x 2.4 | Silicone | To connect | 8 | 1 | 1 | |
4017 ISP | 0.55 | 1.45 x 2.3 | Polyurethane | To connect | 7 | 1 | 1 | |
4018 ISP | 0.55 | 1.7 x 2.65 | Polyurethane | To connect | 8 | 1 | 1 | |
4019 ISP | 0.55 | 1.9 x 3.0 | Polyurethane | To connect | 9 | 1 | 1 | |
4108 ISP | 0.55 | 1.2 x 2.4 | Silicone | Pre-connected | 8 | 1 | 1 |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
