Multi-lumen CVC
Multicath 2 - 3Fr
Beskrivning
Neonatal and paediatric double-lumen central venous catheter Radiopaque central venous catheter inserted by Seldinger technique. Centimetre… Läs mer
Indikation
Multicath 2 is a double-lumen CVC introduced in the internal jugular, subclavian or femoral vein allowing:
- infusion of any type of I.V. solution (parenteral nutrition, fluid loading, hypertonic...)
- simultaneous administration of medication even those presenting chemical incompatibilities
Produktens höjdpunkter
- A choice of multi-lumen CVCs designed and adapted to the needs of the paediatric patient according to age, height and weight:
- 2 or 3 lumens
- diameters: 3, 4.5 and 5.5 Fr
- lengths: 6 to 30 cm. - A choice of polyurethane multilumen CVC according to patient risk:
- multicath: standard PUR for low risk patients
- multistar: antimicrobial technology with rifampicin and miconazole for high risk patients - Components designed for the safety of paediatric patients:

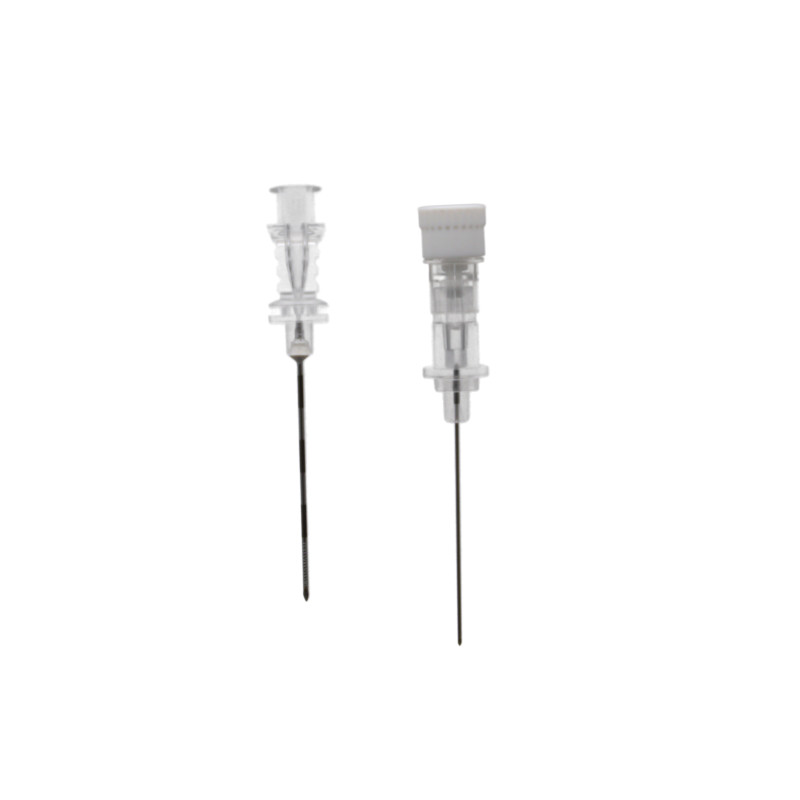

- a choice of introducers : hyper echogenic needle or short I.V cannula
- highly kink resistant double ended flexible, J and straight, nitinol guidewire coated with teflon for ultra low resistance
- A choice of multi-lumen CVCs designed and adapted to the needs of the paediatric patient according to age, height and weight:
- 2 or 3 lumens
- diameters: 3, 4.5 and 5.5 Fr
- lengths: 6 to 30 cm. - A choice of polyurethane multilumen CVC according to patient risk:
- multicath: standard PUR for low risk patients
- multistar: antimicrobial technology with rifampicin and miconazole for high risk patients - Components designed for the safety of paediatric patients:
- a choice of introducers : hyper echogenic needle or short I.V cannula
- highly kink resistant double ended flexible, J and straight, nitinol guidewire coated with teflon for ultra low resistance
Beskrivning
Neonatal and paediatric double-lumen central venous catheterRadiopaque central venous catheter inserted by Seldinger technique. Centimetre markings from 4 cm from distal tip and Robert clamps. Straight Nitinol guidewire particularly kink-resistant. The user can choose from 2 types of introducer, i.e. needle or I.V. cannula. This 3Fr catheter is presently the smallest double-lumen Seldinger catheter available on the market.

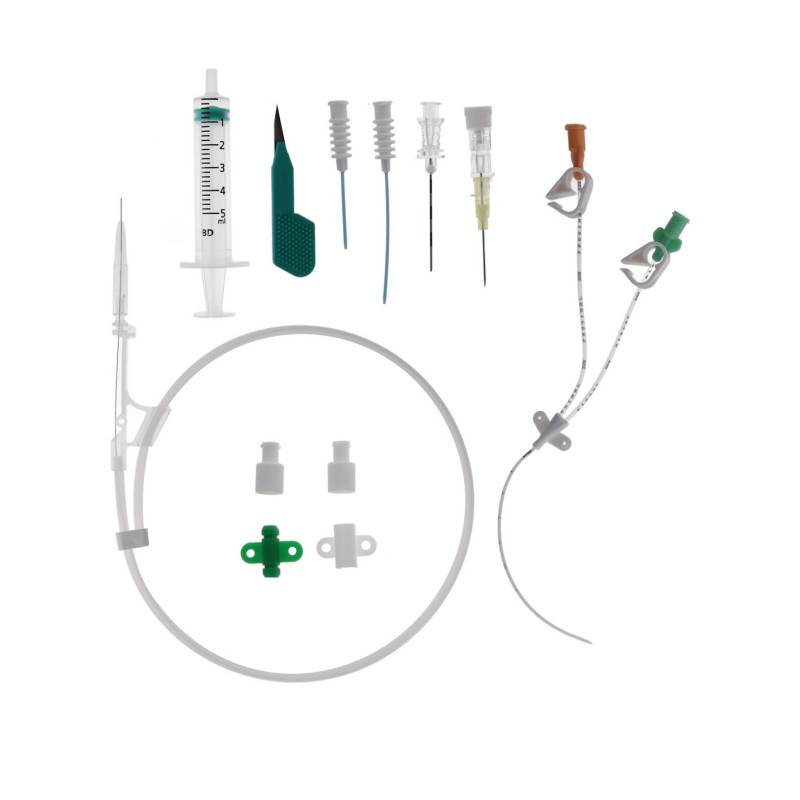

Presented in a rigid blister pack containing:
- 1 double-lumen 3Fr catheter
- 1 short I.V. cannula 24G - Length 19 mm
- 1 introducer echogenic needle 21G - Length 38 mm
- 1 Nitinol straight guidewire
- 2 dilators 3Fr (Length 3 cm and 5 cm)
- 1 secondary fixation wing
- 2 injection caps
- 1 scalpel
- 1 5 ml syringe
Referenser och funktioner
Catheter | Distal lumen | Proximal lumen | Guidewire | Förpackning | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Favourites | Kod | Length cm | Ext. Ø mm | Ø Fr | Flow rate ml/min | Ø G | Prim. vol. ml | Flow rate ml/min | Ø G | Prim. vol. ml | Ø mm | Length cm | Antal/Avd.förpackning | Antal/Trp.förpackning |
157.064 | 6 | 1.05 | 3 | 4.4 | 22 | 0.09 | 4.4 | 22 | 0.09 | 0.3 | 50 | 5 | 45 | |
157.084 | 8 | 1.05 | 3 | 4.2 | 22 | 0.08 | 4.2 | 22 | 0.08 | 0.3 | 50 | 5 | 45 | |
157.114 | 10 | 1.05 | 3 | 3.1 | 22 | 0.07 | 3.1 | 22 | 0.09 | 0.3 | 50 | 5 | 45 | |
157.124 | 12.5 | 1.05 | 3 | 3.0 | 22 | 0.10 | 3.0 | 22 | 0.10 | 0.3 | 50 | 5 | 45 | |
157.154 | 15 | 1.05 | 3 | 2.3 | 22 | 0.11 | 2.3 | 22 | 0.11 | 0.3 | 50 | 5 | 45 | |
157.204 | 20 | 1.05 | 3 | 1.8 | 22 | 0.15 | 1.8 | 22 | 0.13 | 0.3 | 50 | 5 | 45 |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
Dokumentation
-
Brochure Paediatric Multicath & Multistar
-
Instruktioner för användning
