Embolectomy catheter
Embolectomy catheters - simple lumen
Beskrivning
Embolectomy or occlusion catheters consist of a polyamide catheter and a bonded, ligated balloon. On the proximal part, a female Luer lock tip and… Läs mer
Indikation
Embolectomy catheters allow removal of emboli in the peripheral arterial system. Occlusion catheters are used for temporary occlusion of a blood vessel without the use of clamps. The balloon takes the shape of the inside of the vessel wall performing a temporary occlusion with minimal damage to the vessel wall.
Produktens höjdpunkter
Flexible tip
To allow an easy introduction while reducing the risk of damage the vessels
Graduation every 10 cm
To follow the progress of the catheter into the vessel
Colour code
For an easy identification of the French size
Printed catheter
Max balloon inflation capacity printed on the catheter for safety
Beskrivning

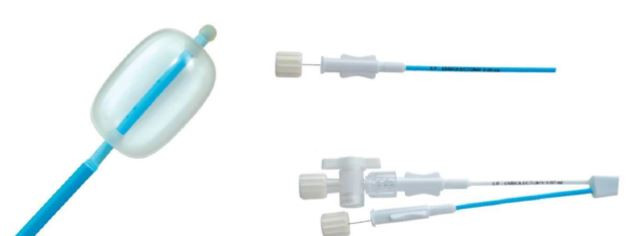

Embolectomy or occlusion catheters consist of a polyamide catheter and a bonded, ligated balloon. On the proximal part, a female Luer lock tip and wings help to connect with the syringe. The catheters are marked every 10 cm (except for the 2Fr catheters, which have an additional intermediate marking from 15 cm). A stainless steel mandrel is supplied with the device. The size and inflation capacity of the balloon are printed on the proximal end. The balloon is inflated with CO2 for 2Fr catheters and with sterile physiological fluid for 3Fr catheters and above, in order to avoid the risk of gas embolism in case of unpredictable balloon rupture. Embolectomy and occlusion catheters are identical. The only difference is the shape of the balloon. Indeed, the balloon of an embolectomy catheter is cylindrical in shape. The balloon of the occlusion catheter is star-shaped to take the shape of the inside of the vessel wall, thus achieving a temporary occlusion with a minimum of damage to the vessel wall.For dual-lumen catheters: a Y-connector is used to connect a secondary tube to the main catheter.
The main line of the catheter is dedicated to the passage of the mandrel and the annex line to the inflation of the balloon.
Codes 70040xx and code 7004105 are balloon catheters for arterial embolectomy.
Codes 70057xx are double lumen balloon catheters for arterial embolectomy.
Referenser och funktioner
| Catheter | Förpackning | ||||
|---|---|---|---|---|---|
| Favourites | Kod | Ext. Ø Fr | Length cm | Antal/Avd.förpackning | Antal/Trp.förpackning |
| 7004010 | 2 | 40 | 1 | 5 | |
| 7004013 | 2 | 60 | 1 | 5 | |
| 7004018 | 2 | 80 | 1 | 5 | |
| 7004021 | 3 | 40 | 1 | 5 | |
| 7004025 | 3 | 60 | 1 | 5 | |
| 7004029 | 3 | 80 | 1 | 5 | |
| 7004034 | 4 | 40 | 1 | 5 | |
| 7004037 | 4 | 60 | 1 | 5 | |
| 7004041 | 4 | 80 | 1 | 5 | |
| 7004046 | 5 | 40 | 1 | 5 | |
| 7004051 | 5 | 80 | 1 | 5 | |
| 7004056 | 6 | 40 | 1 | 5 | |
| 7004061 | 6 | 80 | 1 | 5 | |
| 7004065 | 7 | 40 | 1 | 5 | |
| 7004068 | 7 | 80 | 1 | 5 | |
| 7004075 | 8 | 80 | 1 | 5 | |
| 7004105 | 5 | 60 | 1 | 5 | |
Ytterligare information
-
Innehåller latex Ja
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Nej
Dokumentation
-
Brochure-Embolectomy-Catheter
-
Instruktioner för användning
