Arterial catheters in polyethylene (PE)
Arterial Leadercath - PE
Beskrivning
Arterial Leadercath is a catheter for arterial access inserted by the Seldinger technique. Although it can be inserted in a variety of arteries, the… Läs mer
Indikation
Arterial Leadercath is a catheter for arterial puncture (radial, femoral, brachial, pedal...).
Arterial Leadercath is used:
- for blood gas measurements (PaO2, PaCO2...)
- invasive arterial pressure monitoring
This catheter can also be used intravenously for infusions and drug administrations.
Produktens höjdpunkter
- Over 30,0000,000 patients treated with arterial leadercath. The combination of polyethylene catheter, catheter diameter, and catheter length delivers consistent arterial pressure signal transmission even for extended dwell times, for adults, children and newborns.
- Smooth catheter placement thanks to the classical Seldinger technique allowing soft transition between the tapered catheter tip and the guidewire.
- Naturally echogenic needle allowing an easy and uniform arterial insertion with precision triangular edge. Arterial puncture with ultrasound facilitated thanks to the naturally echogenic needle and the precision of the triangular edge bevel.
Beskrivning
Arterial Leadercath is a catheter for arterial access inserted by the Seldinger technique.Although it can be inserted in a variety of arteries, the most common sites for the placement of this catheter are the radial and the femoral artery.
The Seldinger technique makes arterial puncture easier particularly in hypotensive patients with a weak peripheral pulse and when arteries are atherosclerosed or narrow.

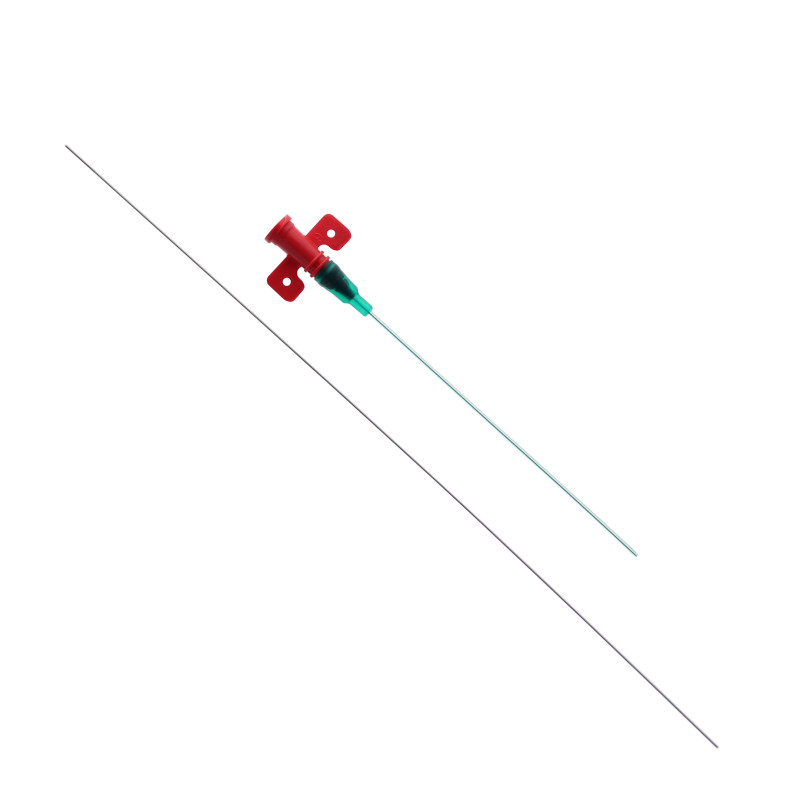

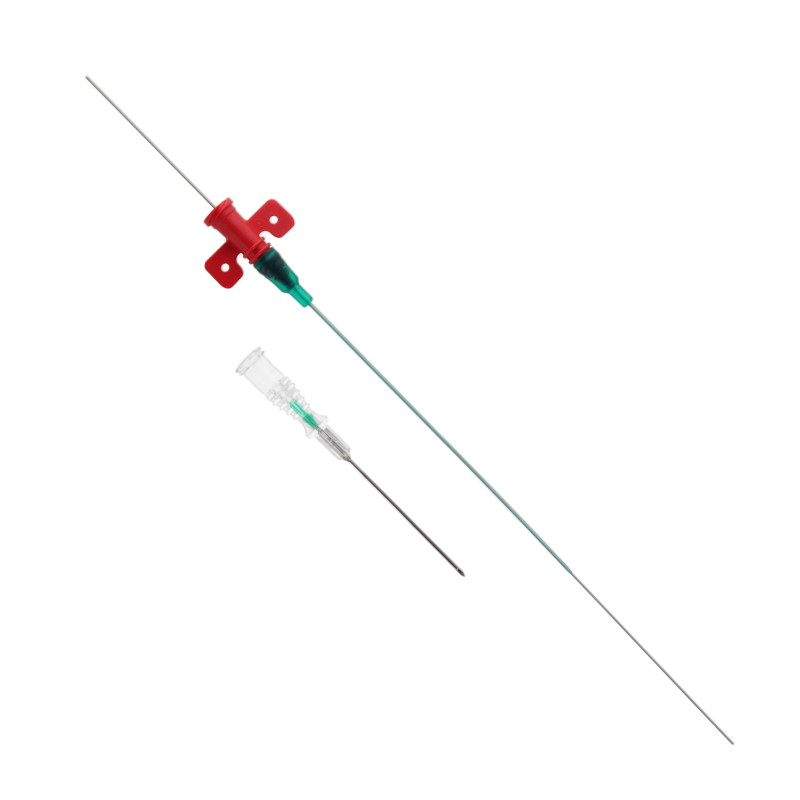

The product is supplied in a rigid blister pack containing:
- 1 introducer needle,
- 1 straight guidewire,

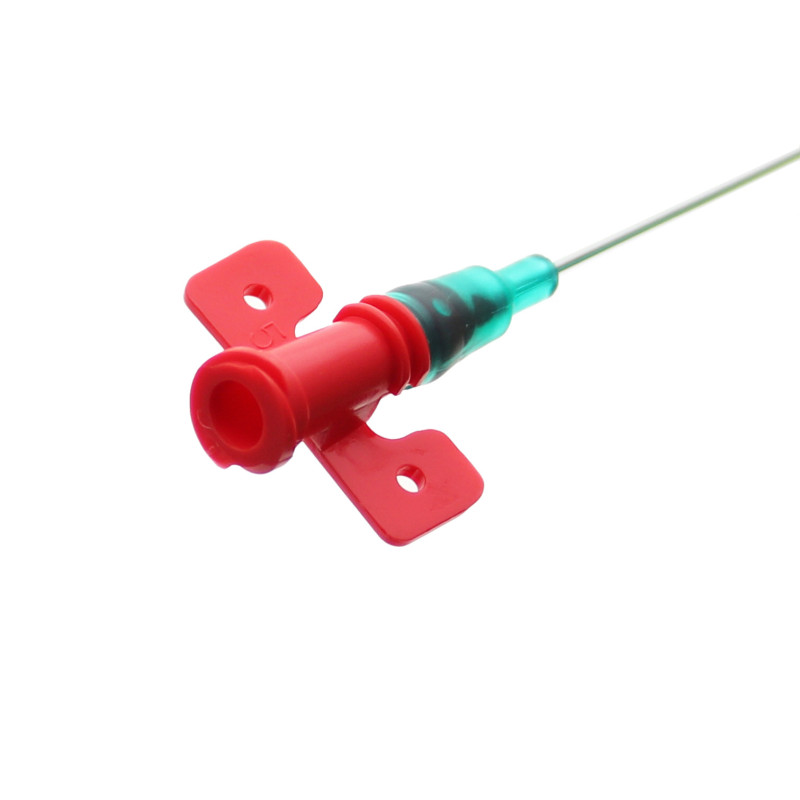

- 1 transparent and radiopaque catheter in polyethylene with winged hub (except codes 115.12/15/17, hub without wings).
Codes 115.12, 115.15 and 115.17 contain also:
- 1 polyethylene extension tube (30cm long),
- 1 syringe 5ml,
- 1 three-way stopcock,
- 1 drape towel 45 x 60cm.
Referenser och funktioner
Catheter | Puncture needle | Guidewire | Förpackning | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Favourites | Kod | Int. Ø mm | Length cm | Gauge G | Ext. Ø mm | Flow rate ml/min | Ø Fr | G G | Length mm | Int. Ø mm | Ext. Ø mm | Length cm | Ø mm | Antal/Avd.förpackning | Antal/Trp.förpackning |
115.090 | 0.6 | 8 | 20 | 0.9 | 24 | 3 | 20 | 38 | 0.6 | 0.9 | 20 | 0.53 | 20 | 180 | |
115.092 | 0.6 | 2 | 20 | 0.9 | 33 | 3 | 20 | 38 | 0.6 | 0.9 | 20 | 0.53 | 20 | 180 | |
115.094 | 0.6 | 4 | 20 | 0.9 | 30 | 3 | 20 | 38 | 0.6 | 0.9 | 20 | 0.53 | 20 | 180 | |
115.096 | 0.6 | 6 | 20 | 0.9 | 27 | 3 | 20 | 38 | 0.6 | 0.9 | 20 | 0.53 | 20 | 180 | |
115.11 | 0.8 | 10 | 18 | 1.2 | 24 | 4 | 19 | 52 | 0.8 | 1.1 | 30 | 0.71 | 20 | 180 | |
115.118 | 0.8 | 8 | 18 | 1.2 | 43 | 4 | 19 | 52 | 0.8 | 1.1 | 30 | 0.71 | 20 | 180 | |
115.12 | 0.8 | 18 | 18 | 1.2 | 34 | 4 | 19 | 68 | 0.8 | 1.1 | 46 | 0.71 | 5 | 45 | |
115.15 | 1.0 | 18 | 17 | 1.5 | 67 | 4.5 | 17 | 70 | 1.1 | 1.4 | 46 | 0.9 | 5 | 45 | |
115.17 | 1.2 | 18 | 16 | 1.7 | 109 | 5 | 16 | 70 | 1.4 | 1.7 | 46 | 1.1 | 5 | 45 |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
Dokumentation
-
Brochure Arterial Leadercath
-
Instruktioner för användning
