Dialysis catheters
Dualysecath
Beskrivning
dualysecath is a double-lumen polyurethane catheter, totally radiopaque and inserted using the Seldinger technique. Available Lengths 15cm: codes… Läs mer
Indikation
Dialysis catheters indicated for temporary vascular access for hemodialysis or hemoperfusion.
Beskrivning
dualysecath is a double-lumen polyurethane catheter, totally radiopaque and inserted using the Seldinger technique.Available Lengths
15cm: codes 1132.01 (10Fr), 1132.81 (10Fr), 1132.11 (12Fr) and 1132.91 (12Fr)20cm: codes 1132.02 (10Fr), 1132.82 (10Fr), 1132.12 (12Fr) and 1132.92 (12Fr)

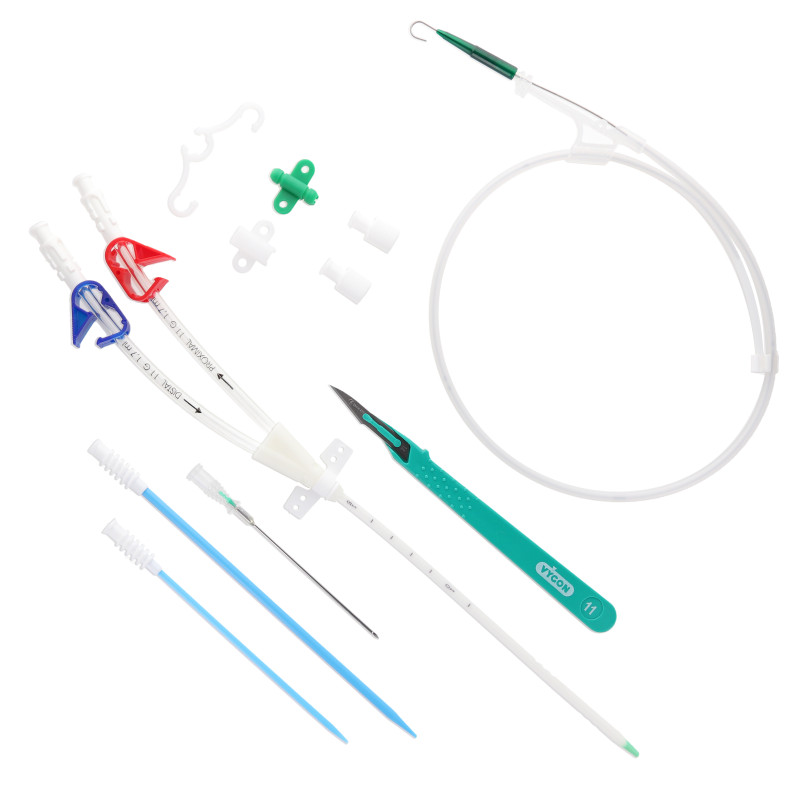

Kit Components
dualysecath tray includes:- 1 double-lumen catheter (centimeter graduations from 9cm from the distal tip)
- 1 puncture needle
- 1 graduated "J" guidewire and guidewire advancer
- 2 caps
- 1 dilator (for codes 1132.01/.02/.81/.82) or 2 dilators (for codes 1132.11/.12/.91/.92)
- 1 scalpel
- 1 orientation clip (only for codes 1132.81/.82/.91/.92)
This device is also available in a triple-lumen version.
For more informations, refer to trilysecath.
Referenser och funktioner
| Catheter | Distal lumen | Proximal lumen | Guidewire | Förpackning | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kod | Length cm | Ø Fr | Flow rate ml/min | Prim. vol. ml | Flow rate ml/min | Prim. vol. ml | Ext. Ø mm | Length cm | Material | Antal/Avd.förpackning | Antal/Trp.förpackning |
| 1132.01 | 15 | 10 | 300 | 1.2 | 300 | 1.1 | 0.88 | 60 | Stainless steel | 10 | 50 | |
| 1132.02 | 20 | 10 | 280 | 1.3 | 280 | 1.2 | 0.88 | 60 | Stainless steel | 10 | 50 | |
| 1132.11 | 15 | 12 | 410 | 1.3 | 410 | 1.2 | 0.96 | 60 | Stainless steel | 10 | 50 | |
| 1132.12 | 20 | 12 | 390 | 1.5 | 390 | 1.4 | 0.96 | 60 | Stainless steel | 10 | 50 | |
| 1132.81 | 15 | 10 | 205 | 1.5 | 210 | 1.4 | 0.88 | 60 | Nitinol | 10 | 10 | |
| 1132.82 | 20 | 10 | 185 | 1.6 | 190 | 1.5 | 0.88 | 60 | Nitinol | 10 | 10 | |
| 1132.91 | 15 | 12 | 350 | 1.7 | 380 | 1.7 | 0.96 | 60 | Nitinol | 10 | 10 | |
| 1132.92 | 20 | 12 | 315 | 1.9 | 350 | 2.0 | 0.96 | 60 | Nitinol | 10 | 10 | |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
Dokumentation
-
hemodynamic_management_catalogue
-
Instruktioner för användning
