Antimicrobial dialysis catheters
Trilysecath expert
Beskrivning
Trilyse Expert is a triple lumen antimicrobial polyurethane catheter for haemodialysis and high volume infusions.Fully radiopaque catheter introduced… Läs mer
Indikation
Catheter for short / medium-term haemodialysis or high volume infusions. It can be inserted in the internal jugular vein, in the femoral vein or eventually in the subclavian vein.
Beskrivning

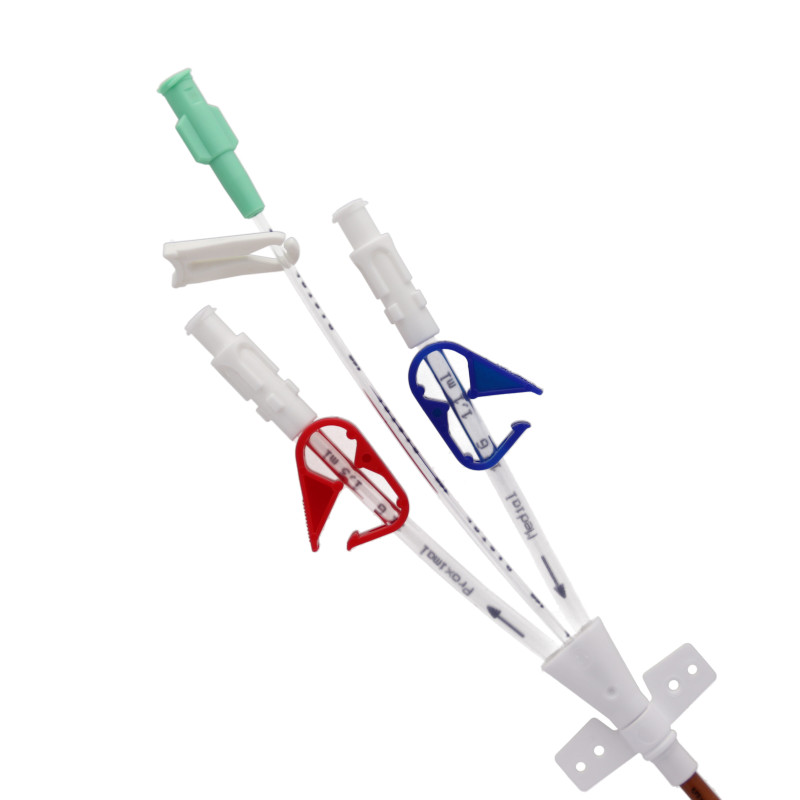

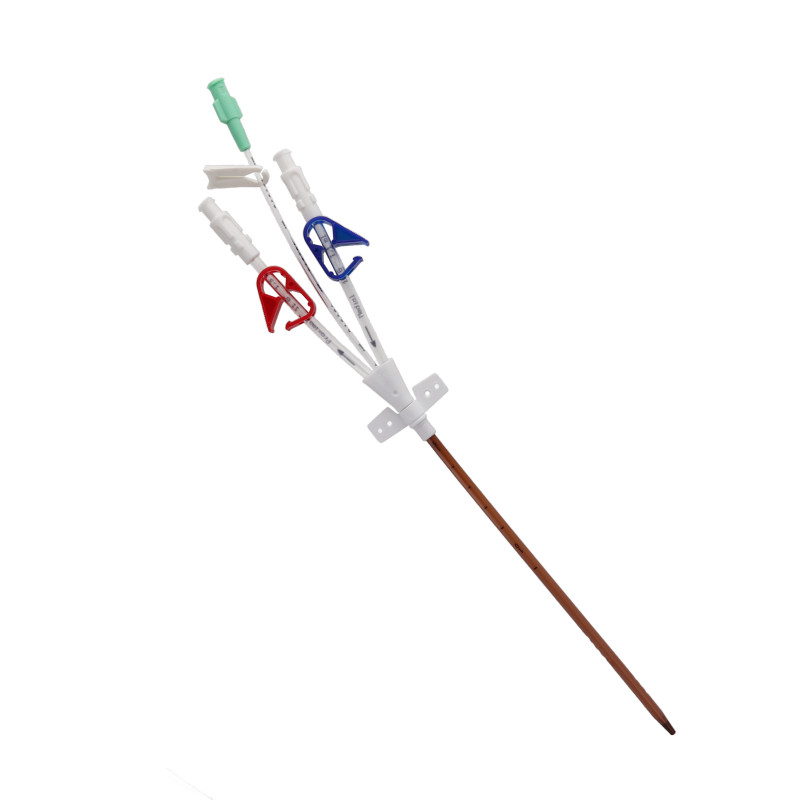

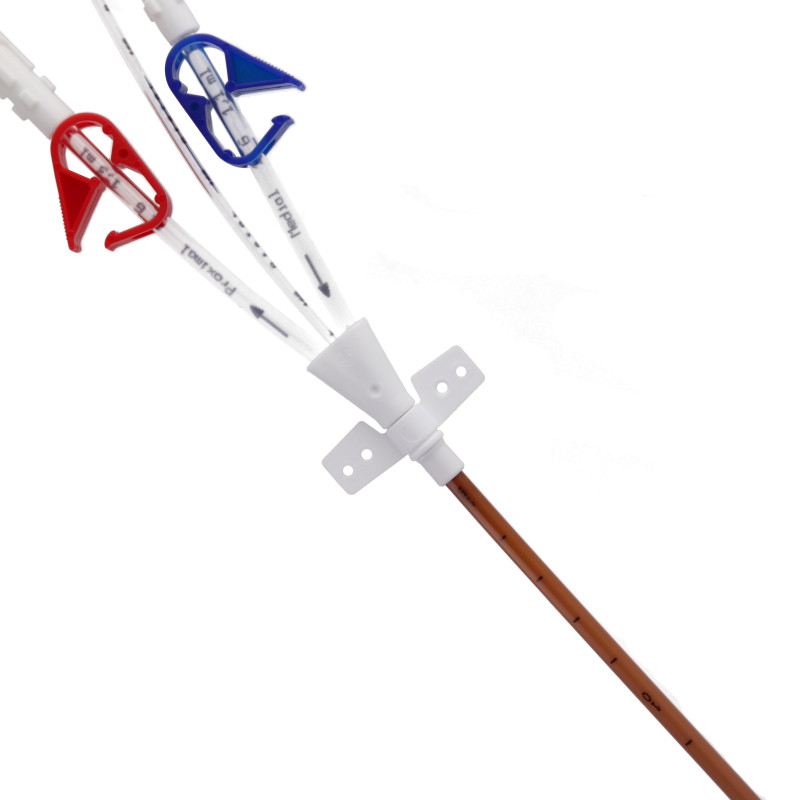

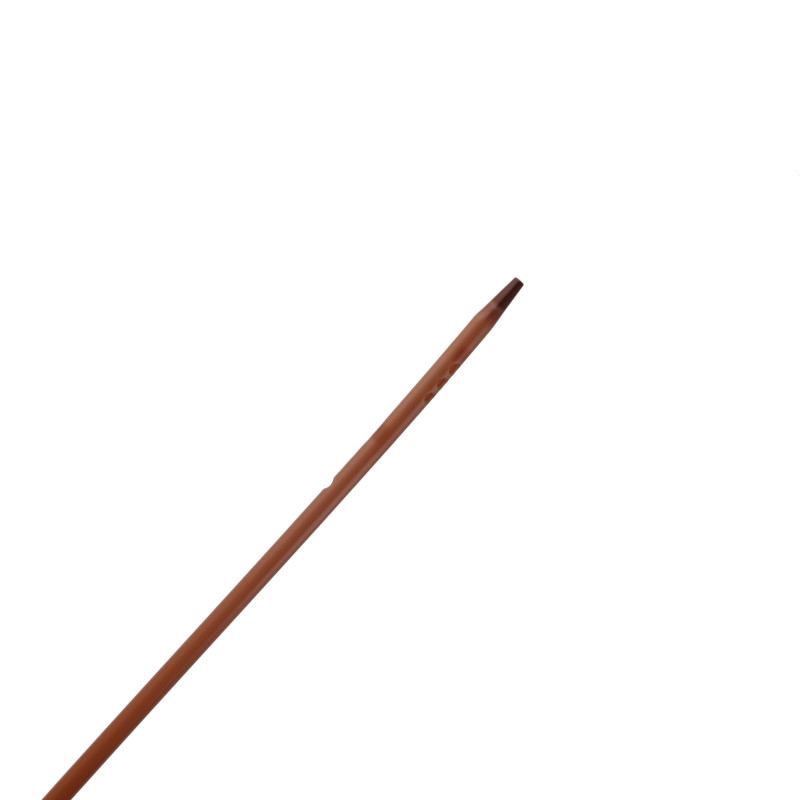

Trilyse Expert is a triple lumen antimicrobial polyurethane catheter for haemodialysis and high volume infusions.Fully radiopaque catheter introduced by the Seldinger technique. Rotating fixation wings and polyurethane extension tubes with clamp. Centimetre graduations from 9 cm from the distal tip. The (green) hub of the distal lumen allows administration of drugs during haemodialysis. Flexible distal tip.The ionic silver antimicrobial agent (Agion) is integrated with the bulk polyurethane material to minimise catheter-related bloodstream infection risks. Silver ions are released slowly to ensure a long term efficacy.
2 different lengths:
- 15cm : ref. 8139.215 (12Fr)
- 20cm : ref. 8139.220 (12Fr)

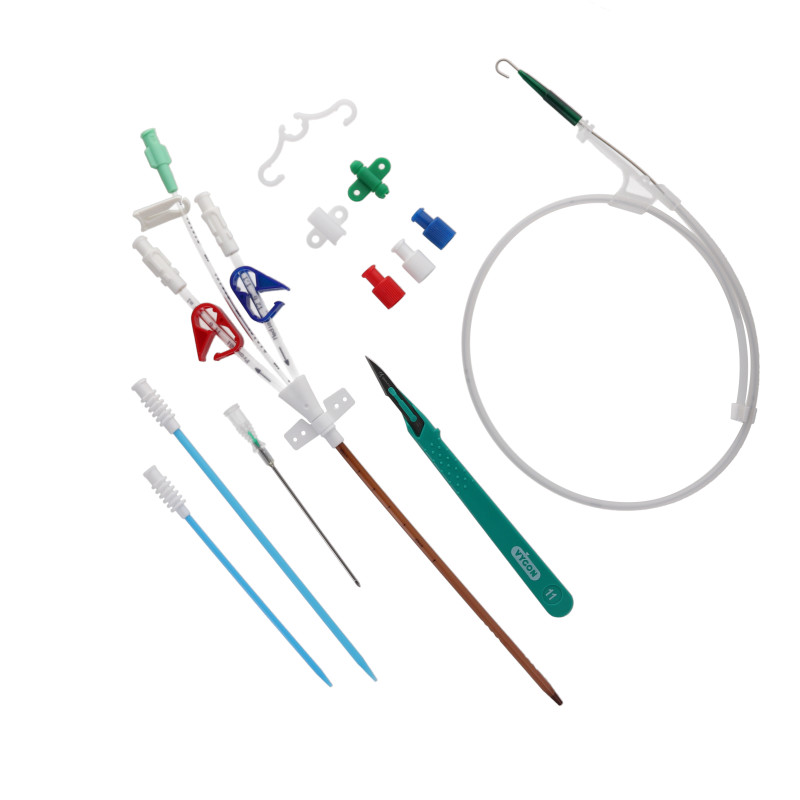

Tray presentation containing:
- 1 triple lumen catheter (XRO – PUR)
- 1 introducer needle ø 1.14 x 1.4 mm Length 70 mm
- 1 graduated “J“ stainless steel guidewire and guidewire advancer
- 4 caps
- 2 dilators
- 1 scalpel
- 1 fixation wing
Trilyse Expert is made of a relatively rigid polyurethane catheter which is highly thermosensitive. The tube becomes much softer when inserted in the vein.
The catheters contain photo reactive silver compounds. To protect the catheters from the light, they are delivered with a blind sheath.
Referenser och funktioner
Catheter | Distal lumen | Medial lumen | Proximal lumen | Puncture needle | Guidewire | Förpackning | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Favourites | Kod | Ø Fr | Length cm | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Int. Ø mm | Ext. Ø mm | Length mm | Ø mm | Length mm | Antal/Avd.förpackning | Antal/Trp.förpackning |
8139.215 | 12 | 15 | 16 | 55 | 0.4 | 12 | 250 | 1.1 | 11 | 320 | 1.3 | 1.1 | 1.4 | 70 | 0.88 | 600 | 10 | 10 | |
8139.220 | 12 | 20 | 16 | 50 | 0.6 | 12 | 220 | 1.3 | 11 | 290 | 1.5 | 1.1 | 1.4 | 70 | 0.88 | 600 | 10 | 10 |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
