Multi-lumen CVC
Multicath 3 - 4.5Fr
Beskrivning
Multicath 3 (paediatric model) is a triple-lumen radiopaque polyurethane central venous catheter inserted in the internal jugular, subclavian or… Läs mer
Indikation
Multicath are polyurethane paediatric multi-lumen central venous catheters introduced by a classic Seldinger technique, generally into the internal jugular, subclavian and femoral veins. Indicated for short term therapy up to 29 days, allowing: infusion of fluids, medications, blood or blood products, measurement of central venous pressure, intermittent injections, blood sampling.
Produktens höjdpunkter
- A choice of multi-lumen CVCs designed and adapted to the needs of the paediatric patient according to age, height and weight:
- 2 or 3 lumens
- diameters: 3, 4.5 and 5.5 Fr
- lengths: 6 to 30 cm. - A choice of polyurethane multilumen CVC according to patient risk:
- multicath: standard PUR for low risk patients
- multistar: antimicrobial technology with rifampicin and miconazole for high risk patients - Components designed for the safety of paediatric patients:
- a choice of introducers : hyper echogenic needle or short I.V cannula
- highly kink resistant double ended flexible, J and straight, nitinol guidewire coated with teflon for ultra low resistance
- A choice of multi-lumen CVCs designed and adapted to the needs of the paediatric patient according to age, height and weight:
- 2 or 3 lumens
- diameters: 3, 4.5 and 5.5 Fr
- lengths: 6 to 30 cm. - A choice of polyurethane multilumen CVC according to patient risk:
- multicath: standard PUR for low risk patients
- multistar: antimicrobial technology with rifampicin and miconazole for high risk patients - Components designed for the safety of paediatric patients:
- a choice of introducers : hyper echogenic needle or short I.V cannula
- highly kink resistant double ended flexible, J and straight, nitinol guidewire coated with teflon for ultra low resistance
Beskrivning

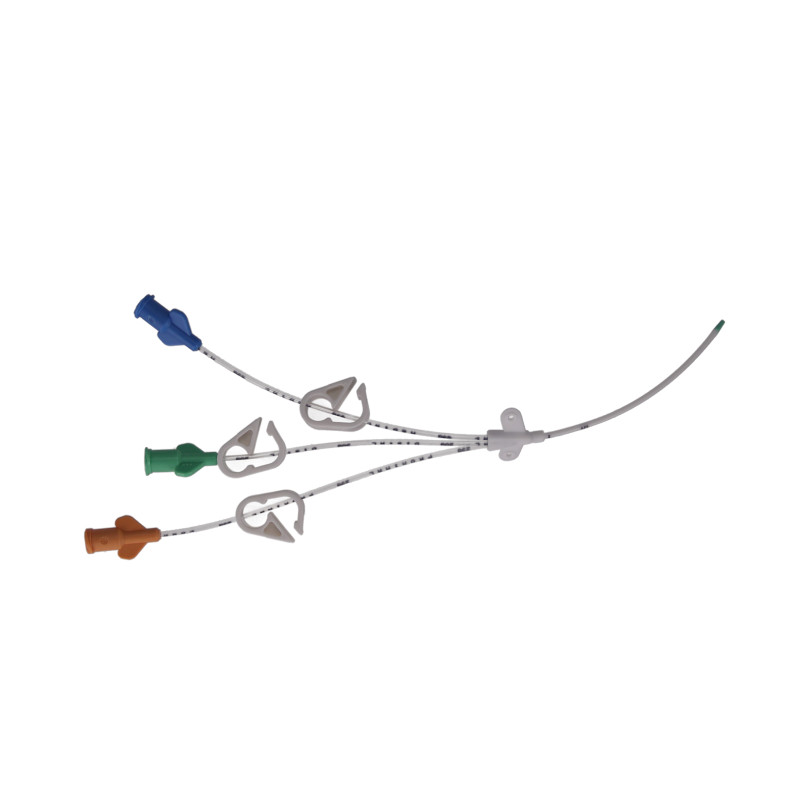

Multicath 3 (paediatric model) is a triple-lumen radiopaque polyurethane central venous catheter inserted in the internal jugular, subclavian or femoral vein using the Seldinger technique.At the proximal end, the 3 lumen of the catheter are connected to extension tubes of different lengths; besides each extension tube is marked "DISTAL", "MEDIUM" or "PROXIMAL" and includes a different coloured hub so as to identify easily the different infusion lines. Extension tubes fitted with Robert clamps.
The user can choose between 2 types of introducer: a needle or a short I.V. cannula.
Multicath 3 is available:
- either with A STRAIGHT STANDARD stainless steel guidewire (codes 1231.123 / 1233.063/083/103)
- or with 1 double ended ‘J’ and straight TEFLON-COATED NITINOL GUIDEWIRE, particularly kink-resistant (codes 1231.122 / 1233.062/082/102/202/302).
Multicath 3 is presented in a rigid blister pack containing:
- 1 triple-lumen PUR catheter Ext. Ø 1.5 mm - 4.5 Fr, totally radiopaque with fixation wings and centimetric graduations from 5 cm from the distal tip

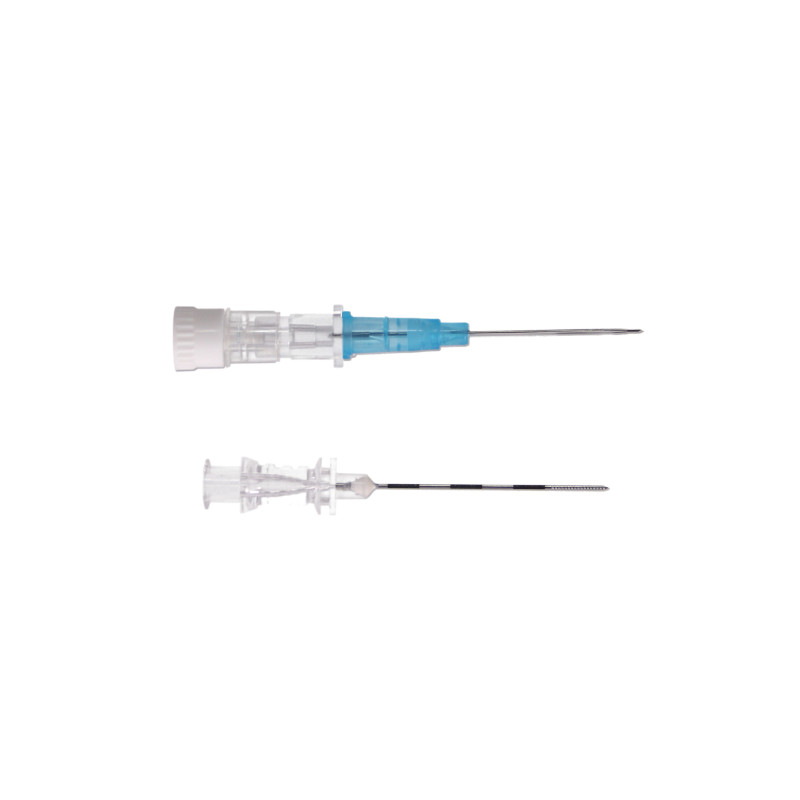

- 1 introducer echogenic needle Ext. Ø 0.8 mm - 21G - Length 38 mm
- 1 short IV catheter, 22G, Length 25 mm
- 1 or 2 metallic guidewires (see information here-above)
- 2 dilators 5 Fr - Length 38 mm and 60 mm - except for codes 1231.123 and 1233.063/083/103 which contain one dilator 5 Fr Length 60 mm,
- 3 caps
- 1 syringe 5 ml
- 1 supplementary fixation wing
- 1 scalpel
Referenser och funktioner
| Catheter | Distal lumen | Medial lumen | Proximal lumen | Guidewire | Förpackning | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Kod | Length cm | Ext. Ø mm | Ø Fr | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Length cm | Ø mm | Antal/Avd.förpackning | Antal/Trp.förpackning |
| 1231.122 | 12.5 | 1.5 | 4.5 | 10 | 0.18 | 20 | 3 | 0.16 | 23 | 4 | 0.16 | 23 | 40 | 0.46 | 5 | 45 | |
| 1231.123 | 12.5 | 1.5 | 4.5 | 10 | 0.18 | 20 | 3 | 0.16 | 23 | 4 | 0.16 | 23 | 40 | 0.46 | 5 | 45 | |
| 1233.062 | 6 | 1.5 | 4.5 | 13 | 0.12 | 20 | 6.5 | 0.11 | 23 | 6.5 | 0.11 | 23 | 40 | 0.46 | 5 | 45 | |
| 1233.063 | 6 | 1.5 | 4.5 | 14.8 | 0.12 | 20 | 7.1 | 0.11 | 23 | 8.1 | 0.11 | 23 | 30 | 0.46 | 5 | 45 | |
| 1233.082 | 8 | 1.5 | 4.5 | 12.5 | 0.14 | 20 | 5.5 | 0.12 | 23 | 5.5 | 0.12 | 23 | 40 | 0.46 | 5 | 45 | |
| 1233.083 | 8 | 1.5 | 4.5 | 12.5 | 0.14 | 20 | 5.5 | 0.12 | 23 | 5.5 | 0.12 | 23 | 40 | 0.46 | 5 | 45 | |
| 1233.102 | 10 | 1.5 | 4.5 | 11.5 | 0.16 | 20 | 5.5 | 0.14 | 23 | 5.5 | 0.14 | 23 | 40 | 0.46 | 5 | 45 | |
| 1233.103 | 10 | 1.5 | 4.5 | 11.5 | 0.16 | 20 | 5.0 | 0.14 | 23 | 5.0 | 0.14 | 23 | 40 | 0.46 | 5 | 45 | |
| 1233.202 | 20 | 1.5 | 4.5 | 7.4 | 0.20 | 20 | 2 | 0.17 | 23 | 2.1 | 0.17 | 23 | 70 | 0.46 | 5 | 45 | |
| 1233.302 | 30 | 1.5 | 4.5 | 5.8 | 0.24 | 20 | 1.5 | 0.19 | 23 | 1.6 | 0.19 | 23 | 70 | 0.46 | 5 | 45 | |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
Dokumentation
-
Brochure Paediatric Multicath & Multistar
-
Instruktioner för användning
