Specific extension lines
Safeguard
Beskrivning

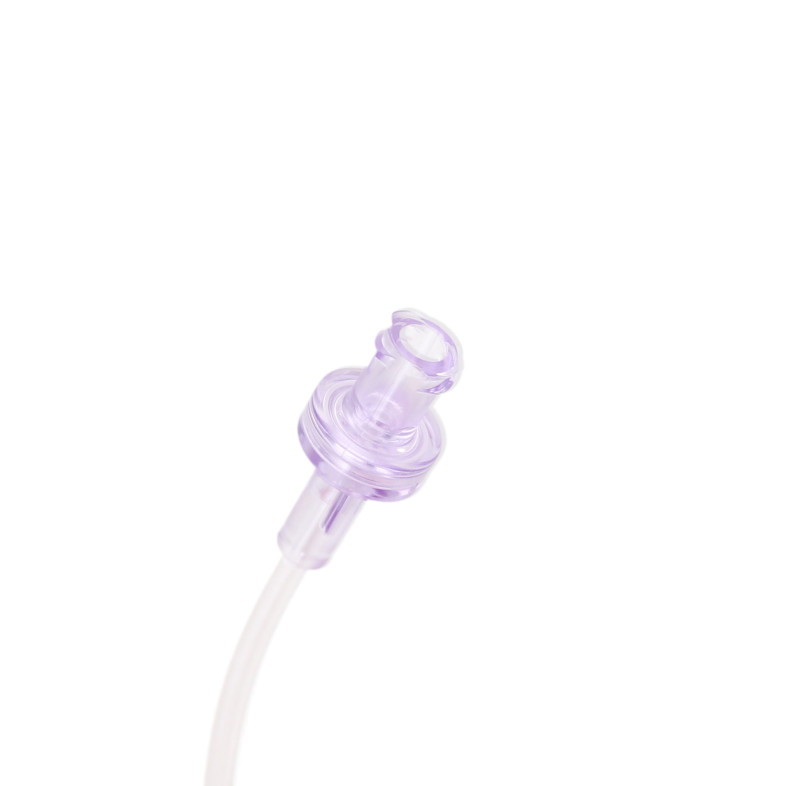

3-layer extension tube, 160 cm long with anti-siphon valve, 0.22 µm air-eliminating filter and clamp. An extension tube with anti-siphon valve… Läs mer
Indikation
Add-on device for IV catheterization.
Extension tube with anti-siphon valve are used to prevent syphonage / downloading when administering a drug or IV solution from a syringe pump.
This occurs either by the height of the syringe being altered or when air becomes entrained into the syringe.
Beskrivning
3-layer extension tube, 160 cm long with anti-siphon valve, 0.22 µm air-eliminating filter and clamp.An extension tube with anti-siphon valve is recommended when administering a drug or IV solution via a syringe pump to avoid syphonage / downloading.
This occurs either by:
- height differences if the syringe has been removed from the syringe pump before the end of the infusion or the infusion line is not clamped
- or by entrainment of air through a crack in the syringe or by an over/under-tightened connexion between the syringe and the extension line.
Referenser och funktioner
| Extension tube | Förpackning | ||||||
|---|---|---|---|---|---|---|---|
| Favourites | Kod | Int. Ø mm | Ext. Ø mm | Prim. vol. ml | Length cm | Antal/Avd.förpackning | Antal/Trp.förpackning |
| 831.01 | 1.0 | 2.5 | 1.8 | 160 | 20 | 240 | |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
