Invasive ventilation
Endotracheal tube - soft green tube
Beskrivning
Plain paediatric endotracheal tubes code 520.xx are designed as follows: Green tube with radiopaque line in extra-soft PVC. The distal end of the… Läs mer
Indikation
Plain endotracheal tube (without cuff) for endotracheal intubation of neonates, infants and children.
Beskrivning
Plain paediatric endotracheal tubes code 520.xx are designed as follows:

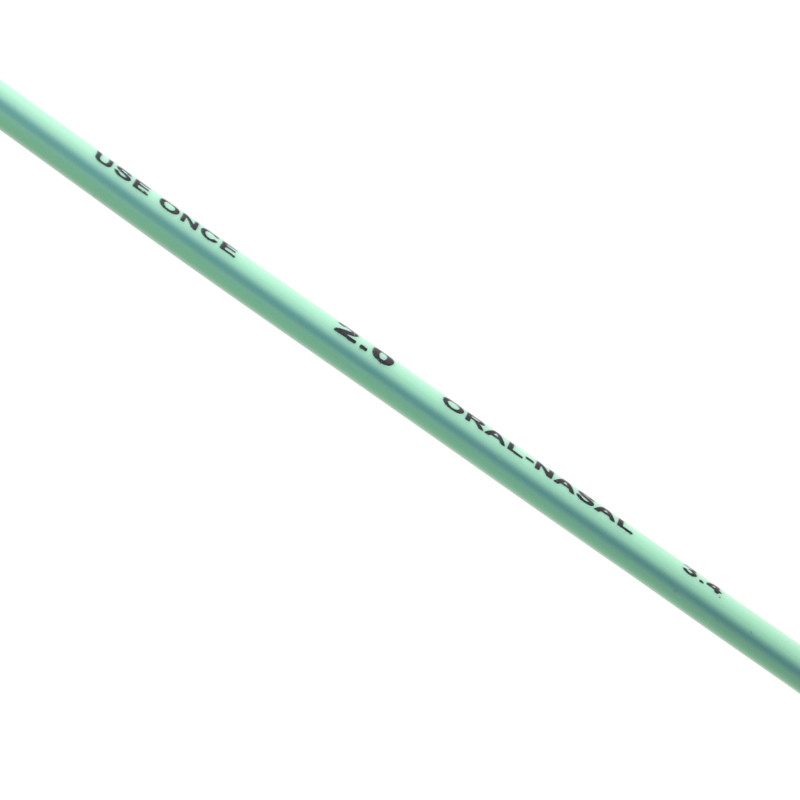

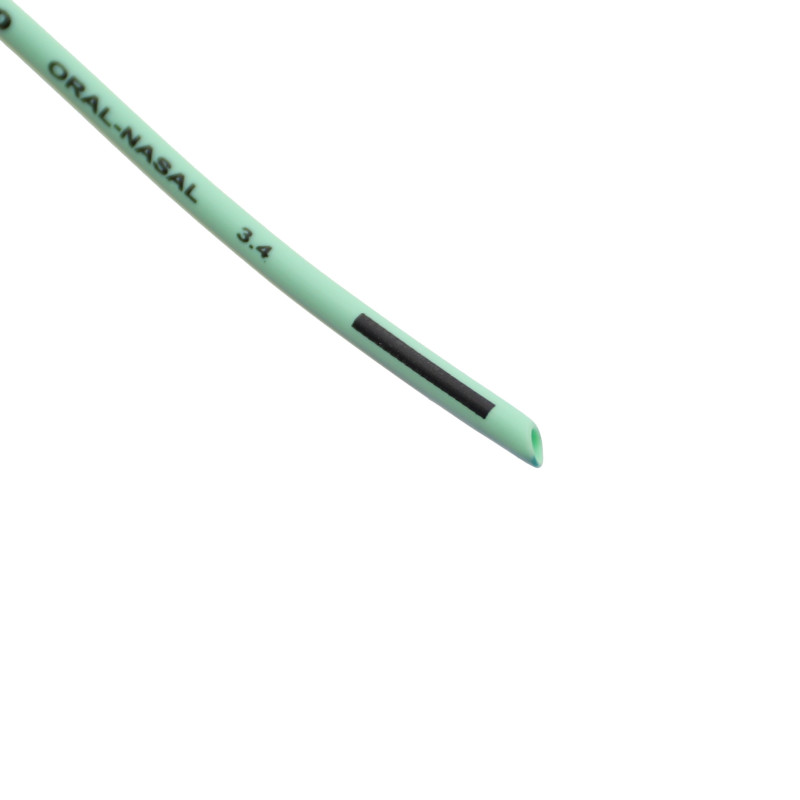

- Green tube with radiopaque line in extra-soft PVC. The distal end of the tube is bevelled to 38°. They have a 17mm intubation depth mark at the distal end. The tube has distance markings every 0.5cm for tubes of size 2.0 to 3.5; distance markings every cm from 9 to 21cm for tubes of size 4.0 and 4.5; distance marking every cm from 13 to 21cm for tubes of size 5.0 and distance markings every cm from 15 to 25cm for tubes of size 5.5 to 6.5.
- A standard male ISO adaptor 15 mm to connect the endotracheal tube to the ventilator.
10 sizes are available: from 2.0mm internal diameter to 6.5mm.
Referenser och funktioner
Tube | Förpackning | ||||||
---|---|---|---|---|---|---|---|
Favourites | Kod | Int. Ø mm | Ext. Ø mm | Length mm | Diameter Fr | Antal/Avd.förpackning | Antal/Trp.förpackning |
520.20 | 2.0 | 3.4 | 165 | 10 | 25 | 300 | |
520.25 | 2.5 | 4.1 | 165 | 12 | 25 | 300 | |
520.30 | 3.0 | 4.6 | 165 | 14 | 25 | 300 | |
520.35 | 3.5 | 5.2 | 165 | 15 | 25 | 300 | |
520.40 | 4.0 | 5.7 | 230 | 17 | 20 | 160 | |
520.45 | 4.5 | 6.2 | 230 | 18 | 20 | 160 | |
520.50 | 5.0 | 7.0 | 230 | 21 | 20 | 160 | |
520.55 | 5.5 | 8.0 | 270 | 24 | 20 | 160 | |
520.60 | 6.0 | 8.5 | 270 | 26 | 20 | 160 | |
520.65 | 6.5 | 9.0 | 270 | 27 | 20 | 160 |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Nej
