Plexus and peripheral nerve blocks: Needles
Echoplex+
Beskrivning
Nerve-stimulating needle for plexus and peripheral nerve blocks with a special insulated coating that has been developped for its echogenic… Läs mer
Indikation
Plexus and peripheral nerves blocks.
Echogenic and stimulating needle.
Produktens höjdpunkter
- Echoplex+ features an ergonomic hub for easy handling. Its transparency makes it easy to detect any blood reflux during the aspiration test.
- Echoplex+ includes an electrical cord (60 cm long) with a female connector and a removable transparent extension tube (50 cm long) for injection of local anesthetic.
- Echoplex+ is available in 7 lengths (from 25 mm to 150 mm). Centimeter markings along the entire length of the needle enable you to check the inserted length at any time. A wider mark indicates 5 cm and a double mark indicates 10 cm.
Beskrivning

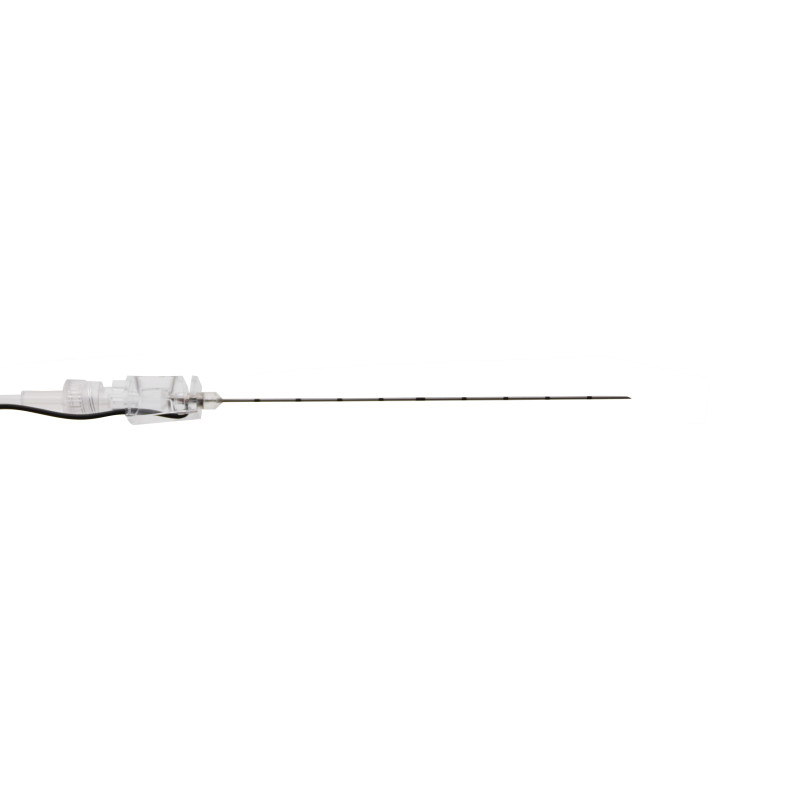

Nerve-stimulating needle for plexus and peripheral nerve blocks with a special insulated coating that has been developped for its echogenic properties.- Echogenic coating right to the tip
- Insulated needle with a conducting tip
- Centimetre graduations to visualise the length of needle introduced
- Transparent needle hub

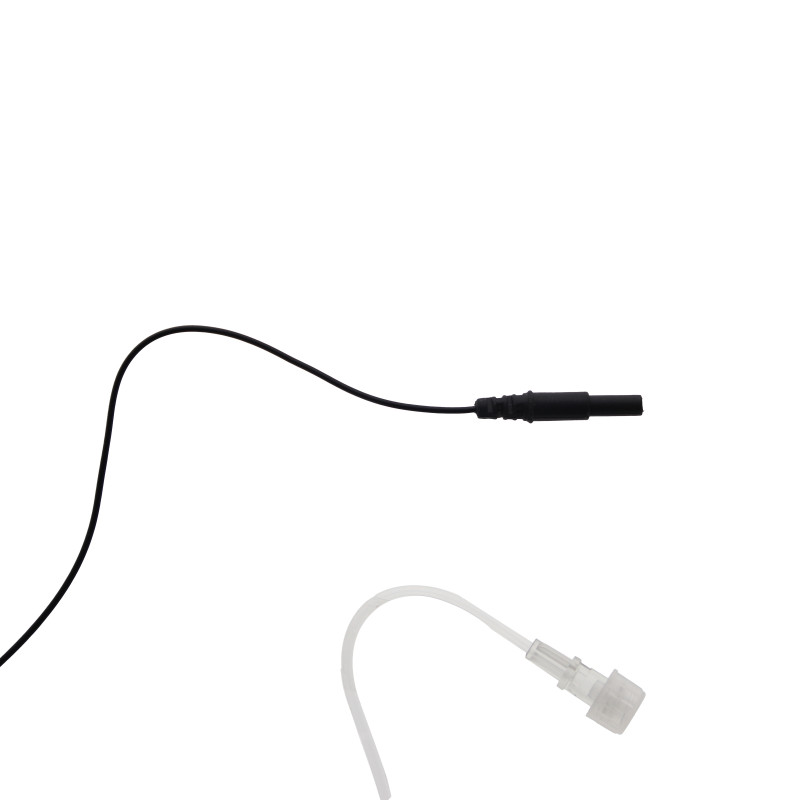

- Removable extension tube, length 50 cm. Priming volume: 1 ml
- 60 cm electrical connection cable
Referenser och funktioner
| Needle | Förpackning | |||||
|---|---|---|---|---|---|---|
| Favourites | Kod | Diameter G | Bevel ° | Length mm | Antal/Avd.förpackning | Antal/Trp.förpackning |
| 6194.103 | 21 | 20 | 100 | 20 | 240 | |
| 6194.123 | 20 | 20 | 120 | 20 | 180 | |
| 6194.153 | 20 | 20 | 150 | 20 | 180 | |
| 6194.253 | 23 | 20 | 25 | 20 | 240 | |
| 6194.353 | 23 | 20 | 35 | 20 | 240 | |
| 6194.503 | 22 | 20 | 50 | 20 | 240 | |
| 6194.853 | 21 | 20 | 85 | 20 | 240 | |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
Dokumentation
-
Catalogue Pain Management
-
Brochure Safe and Controlled Block
-
Brochure Echoplex
-
Instruktioner för användning
