Dual flow PU gastric tubes

Beskrivning

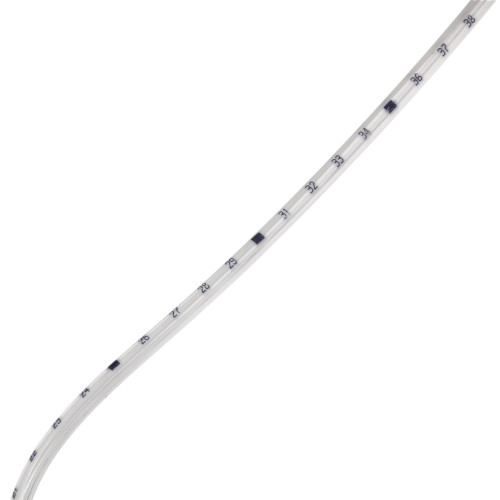

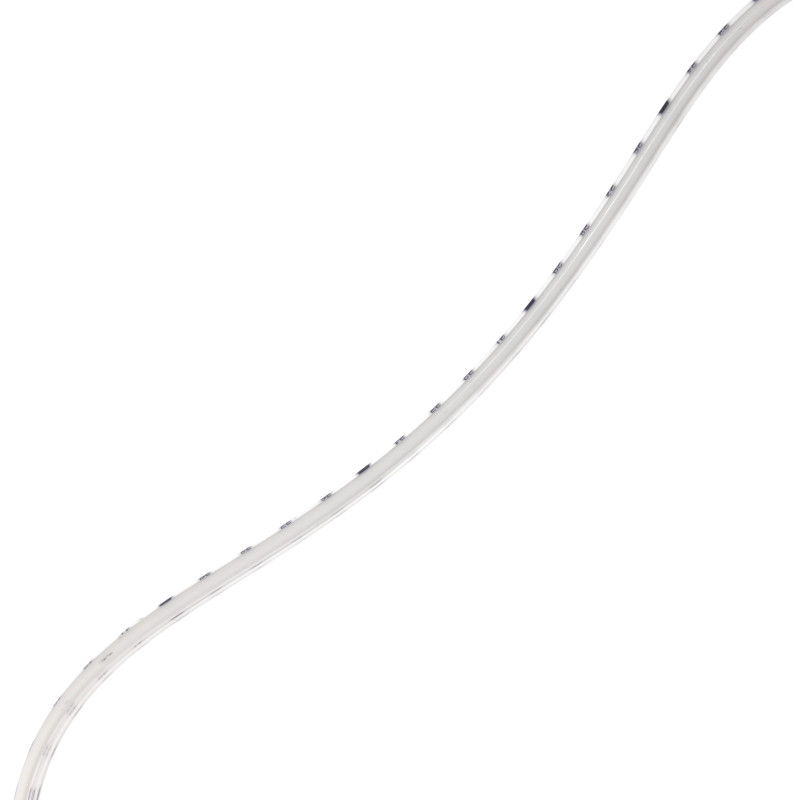

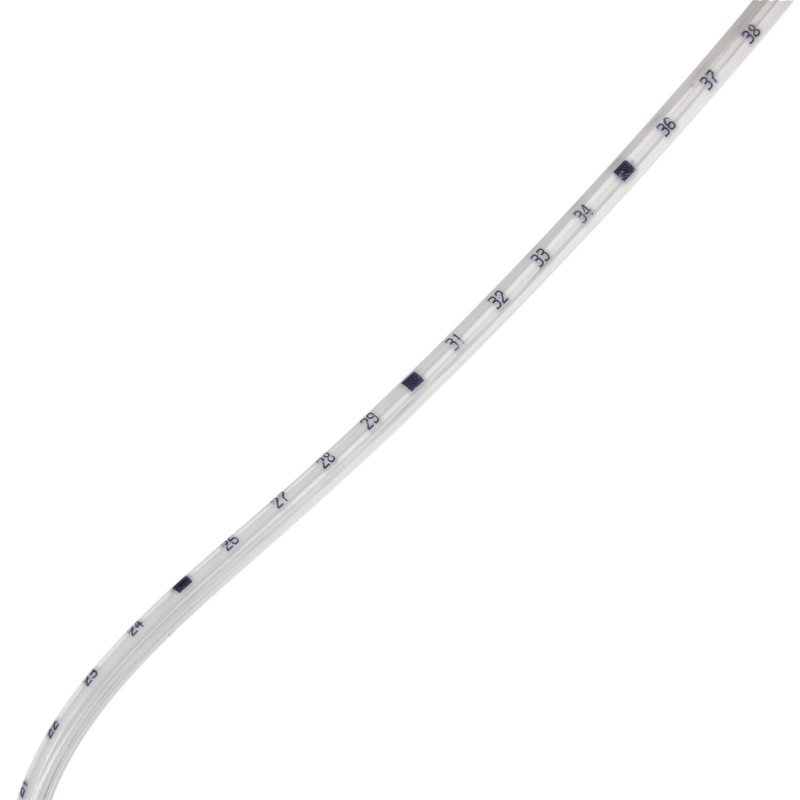

Transparent  Polyurethane tube with radiopaque line and closed tip. Centimetric marking from 5 to 45 cm (06 and 08Fr), from 10 to 65 cm (10Fr), from 10 to 75 cm (12 to 21Fr) from the distal tip.

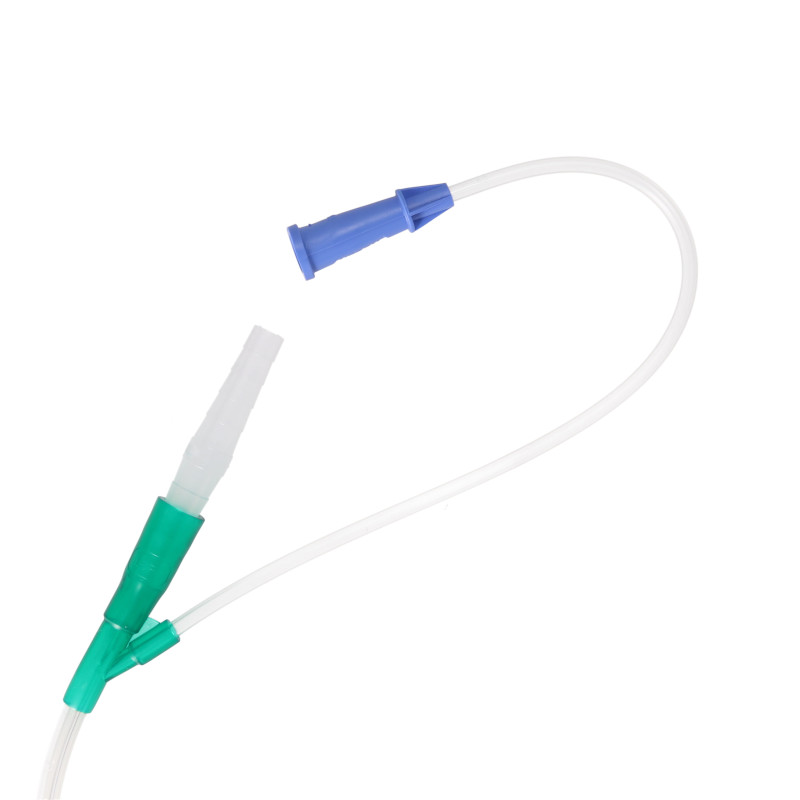

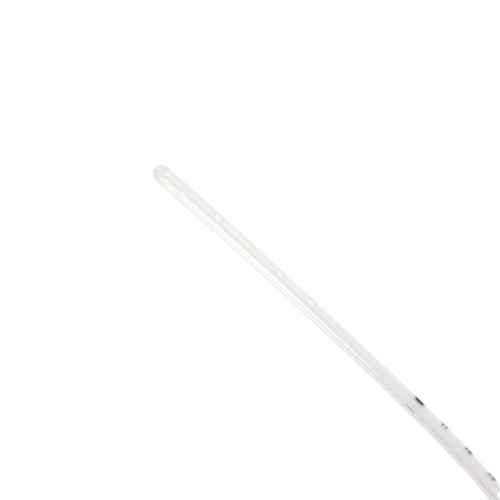

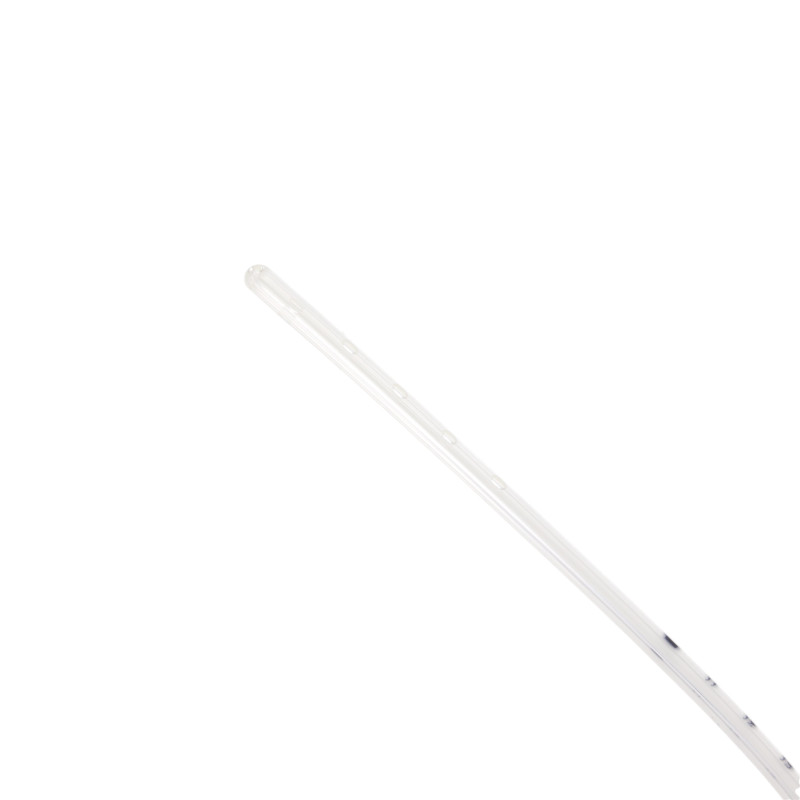

Double lumen sump tube comprising a principal suction lumen with multiple eyes at the distal end and a secondary ventilation channel with a smaller cross section that communicates with the main suction lumen at the distal tip. Both channel lumen are fitted at the proximal end with a flexible female conical mount.

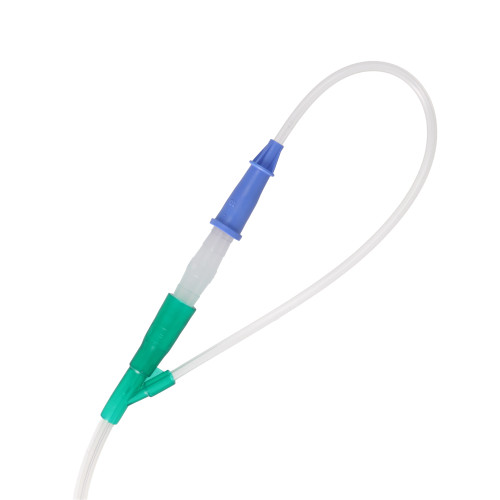

A biconical adaptor is provided at the distal of the main channel (grey funnel) to increase the choice of possible connections.

The main channel is connected to a suction apparatus, the secondary blue-coloured passage is open to atmospheric air and maintains the suction site at atmospheric pressure.

The tube is used to prevent accumulation of gastric secretions and air, thus allowing decompression of the stomach by continuous aspiration without trauma to the gastric mucosa.

06 - 08Fr: 6 lateral eyes – Length 60cm

10Fr: 10 lateral eyes – Length 90cm

12 - 14 - 16 - 18 - 21Fr:10 lateral eyes – Length 120cm

PUR tubes can be used up to 4 weeks.
