Closed Safety Connectors CSSA
Qimomale
Beskrivning
Qimomale is a multi-purpose, closed, needle-free, I.V. connection device which has been designed for the preparation and safe administration of… Läs mer
Indikation
Qimomale is a needleless, disinfectable closed I.V. system. Qimomale is a safety adaptor mounted on syringe, an infusion set or an extension tube which can only be connected onto a device featuring a Qimofemale end.
Produktens höjdpunkter
CSSA
Qimono is a Closed Safety System for Administration that prevents contamination of Nurses when infusing chemotherapy to patients
Screwless and universal device
Qimono has a unique bayonet screwless connection and offers a universal access to allow flushing patient vascular access at the end of the infusion
Chemical & Physical compatibility with cytotoxics
Qimono is chemically and physically compatible with most of the current cytotoxic drugs used for chemotherapy
Beskrivning

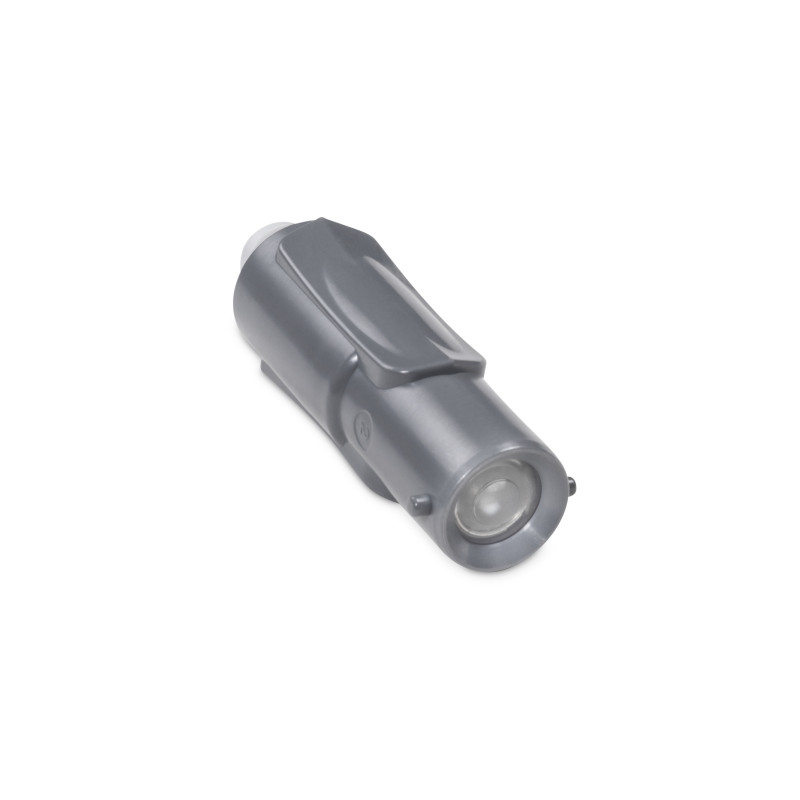

Qimomale is a multi-purpose, closed, needle-free, I.V. connection device which has been designed for the preparation and safe administration of hazardous drugs. Qimomale has a very easily disinfectable membrane (disinfection must be carried out before and after use) which automatically closes when Qimofemale is disconnected.Qimomale is a safety adaptor, the proximal end of which must be connected onto the male Luer-lock end of a syringe, an extension tube or an infusion set.
At the distal end, the Luer bayonet end can only be connected to devices which feature a Qimofemale end.
Note: after the connection of Qimomale onto a Luer-lock male hub, Qimomale rotates and cannot be disconnected anymore.

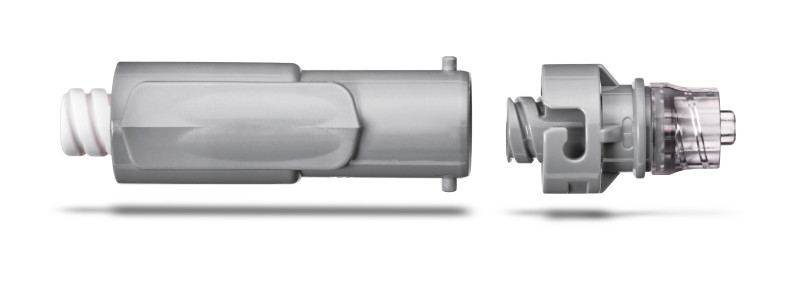

Qimomale can only be connected to the female Luer bayonet end of Qimofemale, by placing the lugs of Qimomale into the notches of the bayonet ring of Qimofemale.
During the connection, the internal metallic tube of Qimofemale opens both the membranes of Qimofemale and of Qimomale and the two conduits fit in together.
It is then possible to inject, infuse or withdraw samples of drugs.
During the disconnection, the membranes automatically close, which ensures the sealing of both devices.
Maximum number of connection: 10
Priming volume: 0.35ml
Qimo Male is lipid-resistant.
Code 7210.91: Qimomale - 1 unit in a supple blister.
Code 7210.910: Set of 25 Qimomale : - 25 units in a blister / 100 units in a box / 1 800 units in a case
Referenser och funktioner
Förpackning | |||
---|---|---|---|
Favourites | Kod | Antal/Avd.förpackning | Antal/Trp.förpackning |
7210.91 | 50 | 900 |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
Dokumentation
-
Brochure Qimono Closed Safety System EN
-
WP3 Chemical resistance of the connection - 12/2015
-
WP5 Resistance to Microbial Ingress - 12/2018
-
Instruktioner för användning
-
WP11 NIOSH Testing in Administration - 10/2019
-
Catalogue Qimono
-
Brochure Qimono
-
WP1 Tightness of QimoMale after freezing - 07/2018
