Closed Safety Connectors CSSA
Qimofemale
Beskrivning
Qimofemale is a multi-purpose, closed, needle-free, I.V. connection device for blood sampling, intermittent injections or continuous infusions of… Läs mer
Indikation
Qimofemale is a needleless, closed I.V. system. It allows: blood samplings, intermittent injections and continuous infusions.
Produktens höjdpunkter
CSSA
Qimono is a Closed Safety System for Administration that prevents contamination of Nurses when infusing chemotherapy to patients
Screwless and universal device
Qimono has a unique bayonet screwless connection and offers a universal access to allow flushing patient vascular access at the end of the infusion
Chemical & Physical compatibility with cytotoxics
Qimono is chemically and physically compatible with most of the current cytotoxic drugs used for chemotherapy
Beskrivning

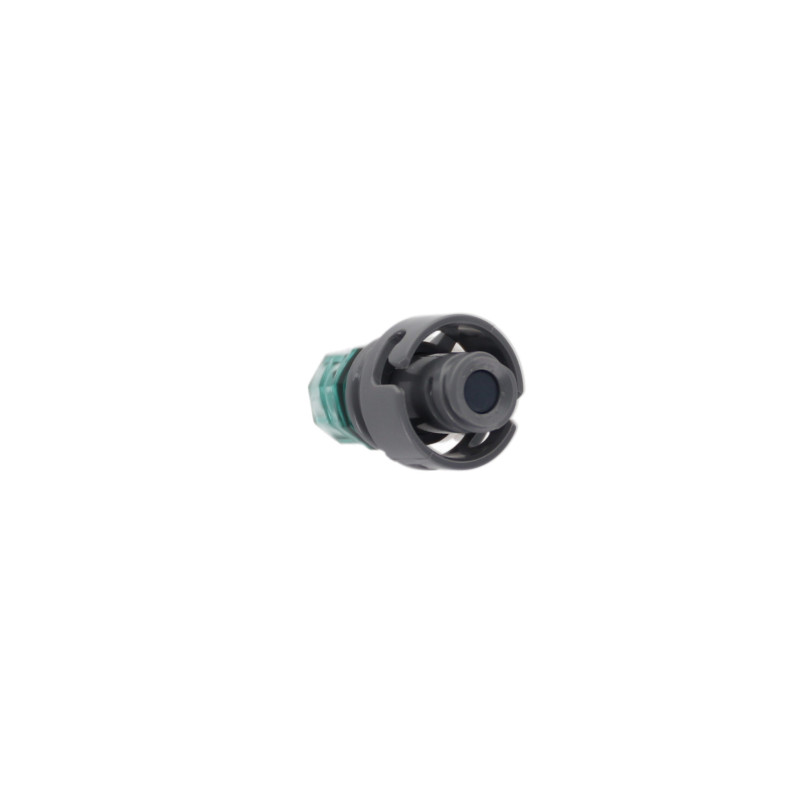

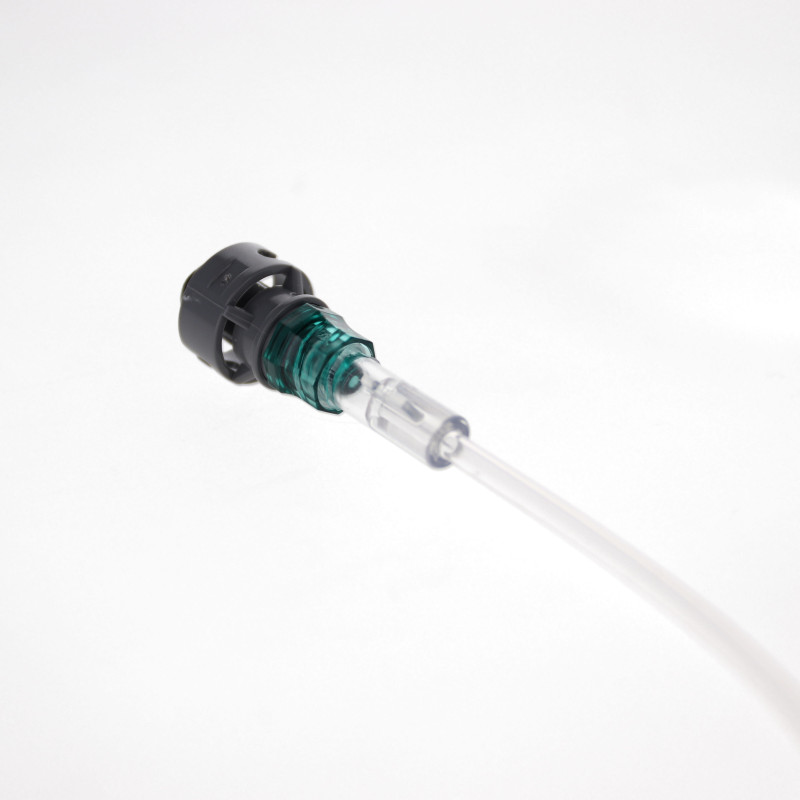

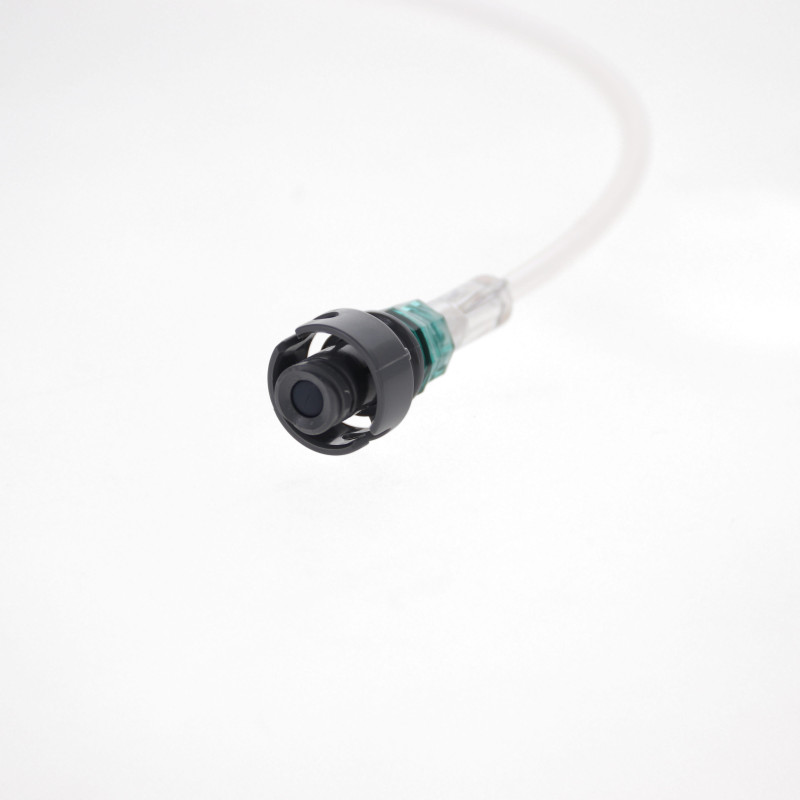

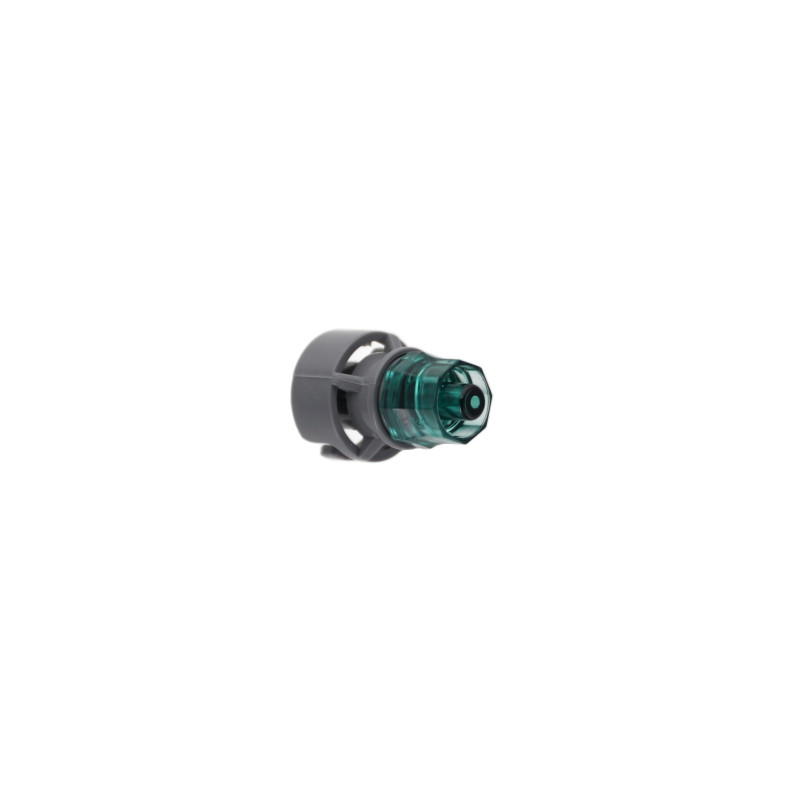

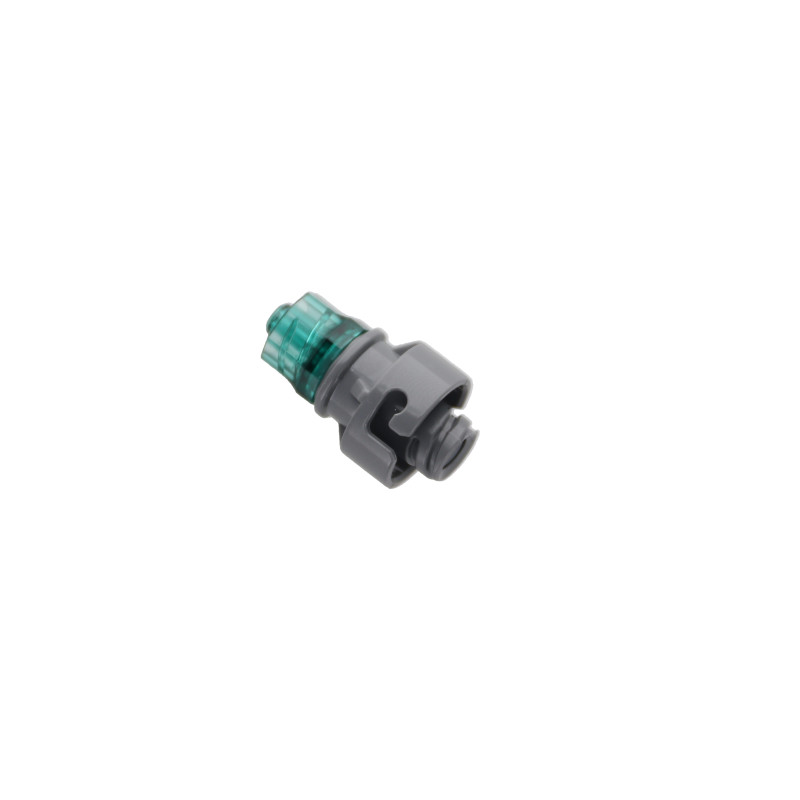

Qimofemale is a multi-purpose, closed, needle-free, I.V. connection device for blood sampling, intermittent injections or continuous infusions of fluids or drugs. Qimofemale has a very easily disinfectable membrane (disinfection must be carried out before and after use) which closes automatically when the infusion line or the syringe is disconnected.At the distal end, Qimofemale has a male Luer-lock connection allowing it to be connected to a venous catheter or an I.V. accessory with a female Luer-lock hub (intravenous catheter, extension tube, Huber needle for infusion in an implantable port, stopcock, ramp of stopcocks, spike ...).
At the proximal end, Qimofemale has a female Luer-lock end, closed thanks to a membrane in polyisoprene.
When a venous catheter or an I.V. accessory is fitted with a Qimofemale, Qimofemale can be connected onto:

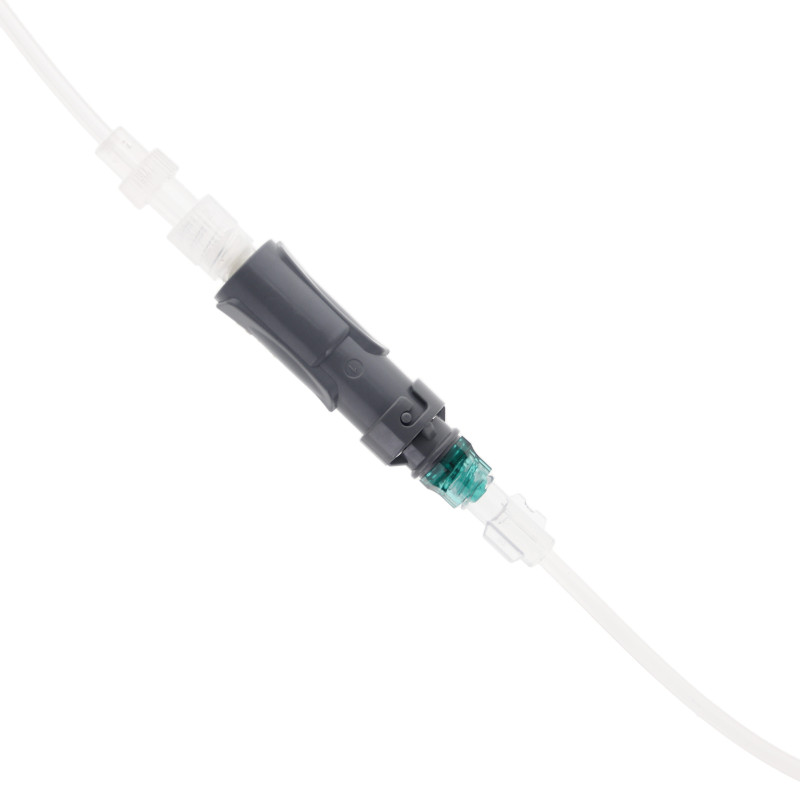

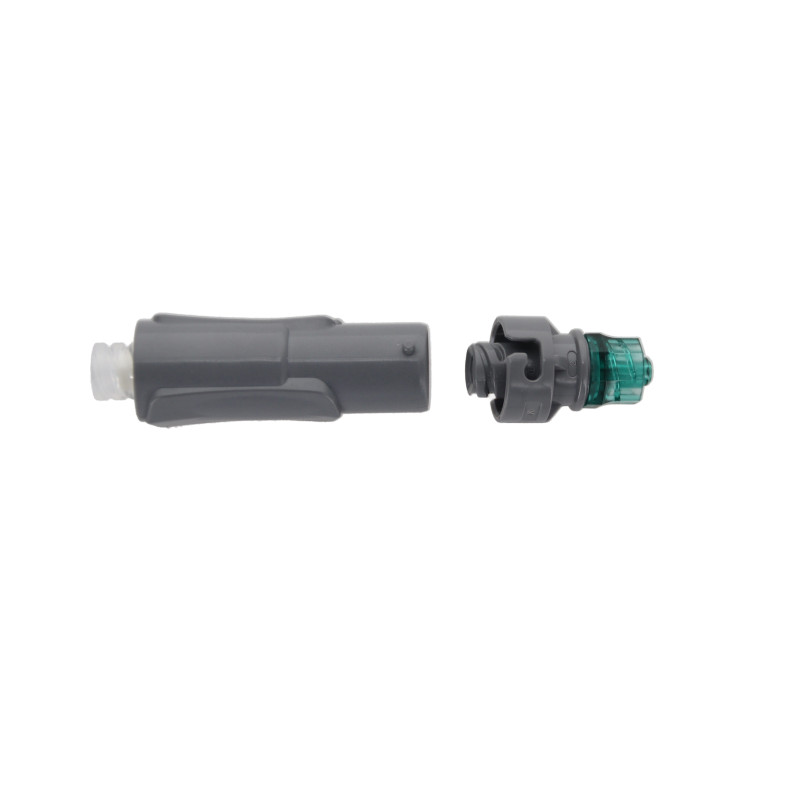

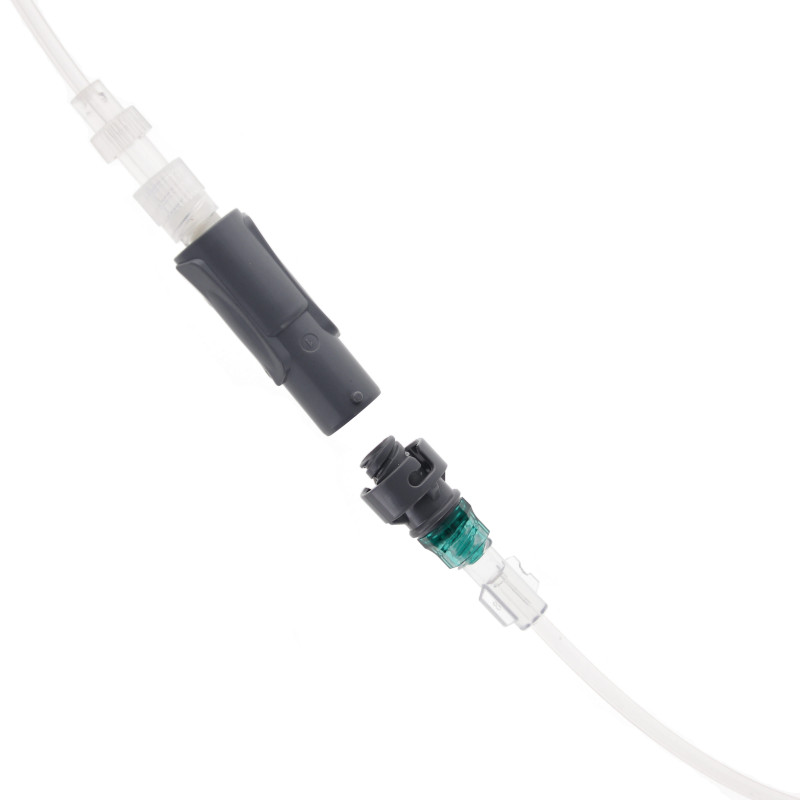

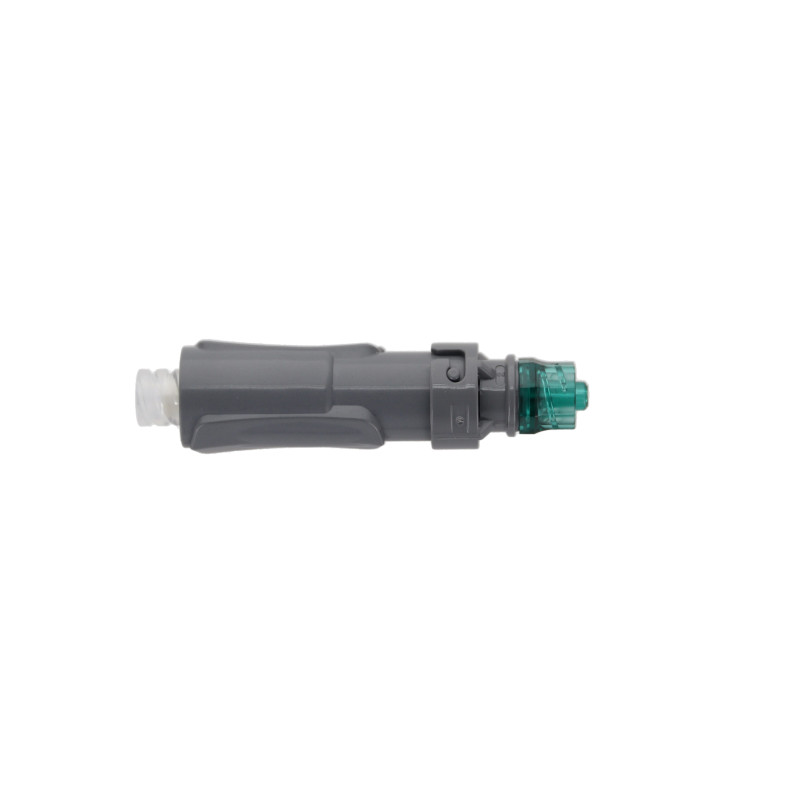

- the Luer bayonet of Qimomale (mounted on a syringe, an extension tube or an infusion set),
- a male Luer-lock end (or Luer Slip) of a syringe or an extension tube.
When a Qimomale or a male Luer end is connected onto Qimofemale, the membrane in polyisoprene moves thanks to a metallic spring and opens an internal conduit allowing the injection, infusion, sampling.
When the device is disconnected, the spring pushes back the membrane and automatically closes the device.
Note: for the users who know Vygon Bionector, please note that Qimofemale is in fact a Bionector. The difference lies in the ring with notches allowing to receive the lugs of Qimomale. Otherwise Qimofemale works like a Bionector.
Qimofemale is resistant to lipid emulsions and antiseptics.
Qimofemale is approved for use with power injectors (CT-scan).
Maximum pressure resistance: 350 psi (24 bars).
To inject contrast medium products (Visiopaque 320mg iodine/ml), the flow rate has been measured as such:
35 psi (2.4 bars): > 5ml/s
145 psi (10 bars): > 10ml/s
Replacement frequency: < 360 connections or 7 days
Priming volume: 0.03ml
Flow rate: 105ml/min
Referenser och funktioner
Förpackning | |||
---|---|---|---|
Favourites | Kod | Antal/Avd.förpackning | Antal/Trp.förpackning |
7210.02 | 50 | 1200 |
Ytterligare information
-
Innehåller latex Nej
-
Innehåller animaliska produkter Nej
-
Pyrogenfri Ja
